AGCO Challenger MT255B - Front Cover and Electrical Component Removal

Splitting the Tractor
02-6 79024230 A Rev.

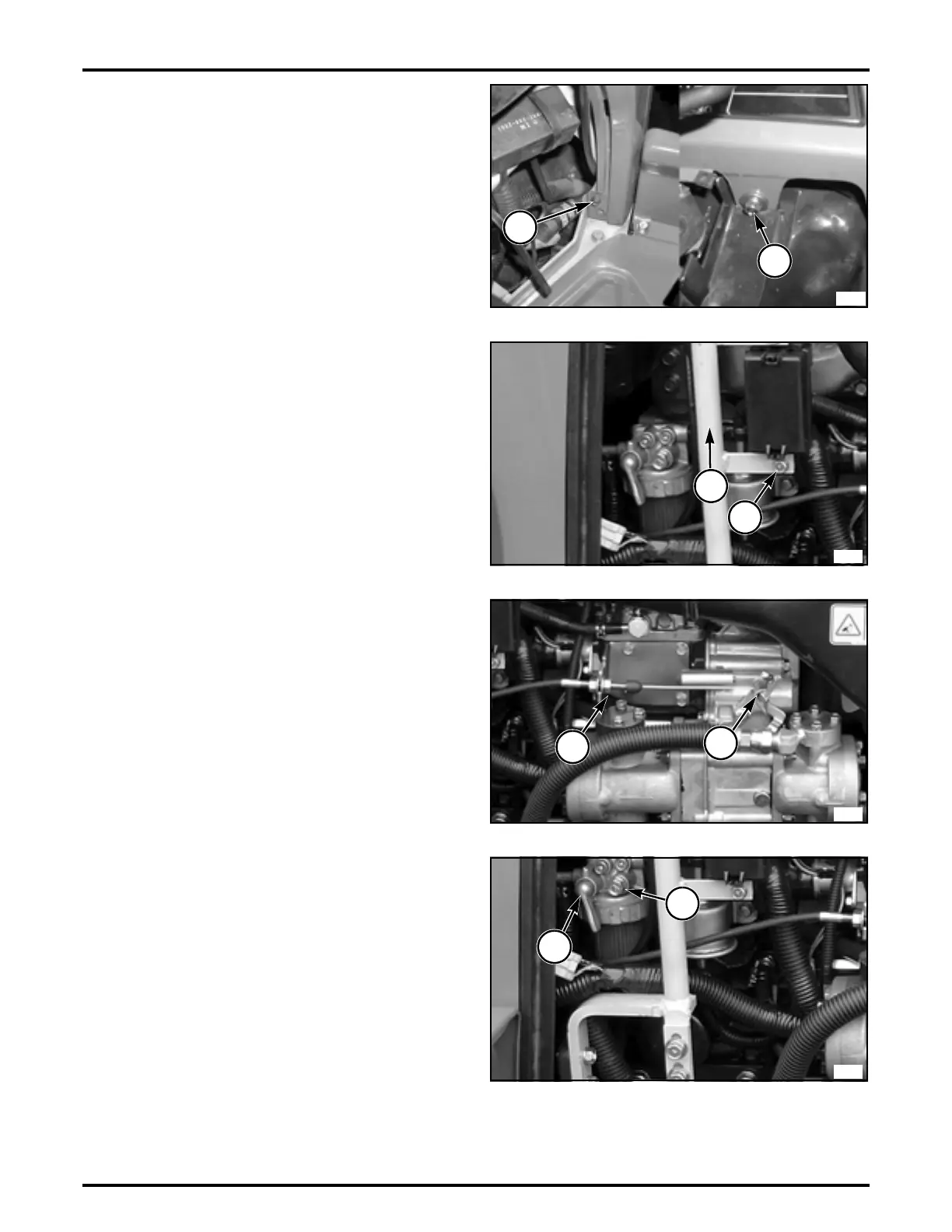

FIG. 15: Remove two screws and loosen two bolts (1).
Disconnect the coupler for meter panel and disconnect
tachometer cable.
Remove front cover.
FIG. 16: Remove two bolts fixing fuse box (1).
Remove two bolts per one side (total four bolts) (2) and
remove the engine hood stay.
FIG. 17: Disconnect the throttle cable (1 and 2).
Disconnect couplers from relays and release the wiring
harness from clamp bands. (Refer to the figure WIRING
HARNESS LAYOUT.)
FIG. 18: Close the fuel cock (1) and disconnect the fuel
hose between the fuel filter and the fuel pump.
FIG. 15
1
1
i-9764
FIG. 16
1
2
i-9765
FIG. 17
2
1
i-9766
FIG. 18
2
1
i-9767
