AGCO Challenger MT255B User Manual

79024230 A Rev. 02-7

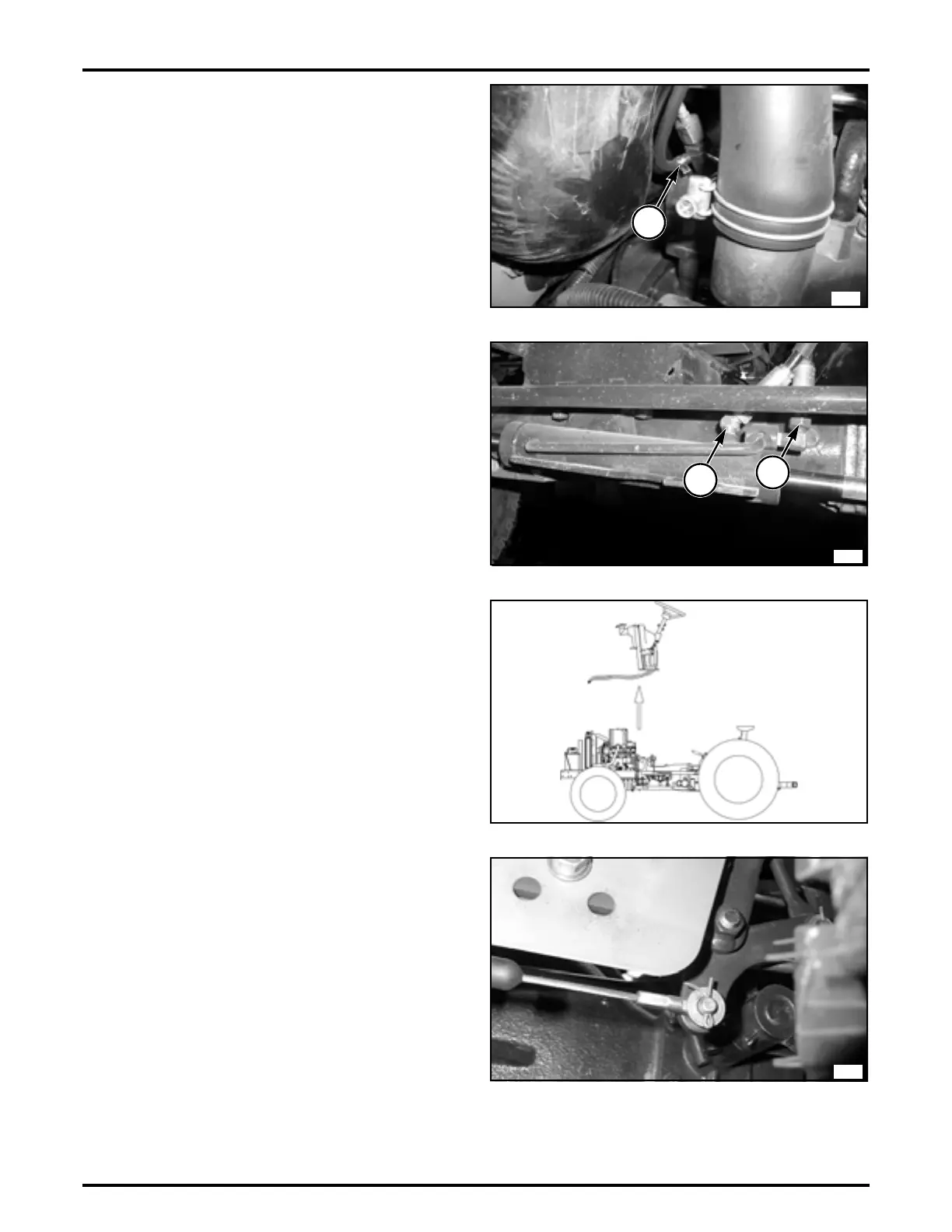

Splitting the Tractor
FIG. 19: Disconnect the fuel return hose (1).
Disconnect the hydraulic hose, which connects the orbit
roll with the reducing valve.
Disconnect the hydraulic hose which connects the orbit
roll with the charge filter.
FIG. 20: Disconnect power steering hoses at the
cylinder side (1 and 2). Release hoses from clamps.
FIG. 21: Remove fixing bolts and remove the steering
post assembly with the fuel tank.
Remove a seat belt.
Remove the rear panel.
FIG. 22: Disconnect the hand brake wire.
FIG. 19
1
i-9768
FIG. 20
1
2
i-9770
FIG. 21
i-9771
FIG. 22
i-9772
