Splitting the Tractor
REMOVE THE EXTERIOR PARTS AS A
SET
The fender, frames, steeling post and fuel tank can be
removed as a set if necessary.
Remove the front grille, hood and side covers with
reference to 1. HOOD AND FRONT GRILLE.
Remove the column cover, rear cover and meter panel
with reference to (14) to (17) of 2. SEAT, FENDERS,
FLOOR DECK, AND RELATED PARTS.
Disconnect the throttle wire cable.
Disconnect and release the related wiring harness (with
reference to WIRING HARNESS RAYOUT).
Remove the lowering speed control knob and the
differential lock lever.
Remove the center cover.
Remove the sheet panel with the seat.
Remove the hydraulic control link assembly.

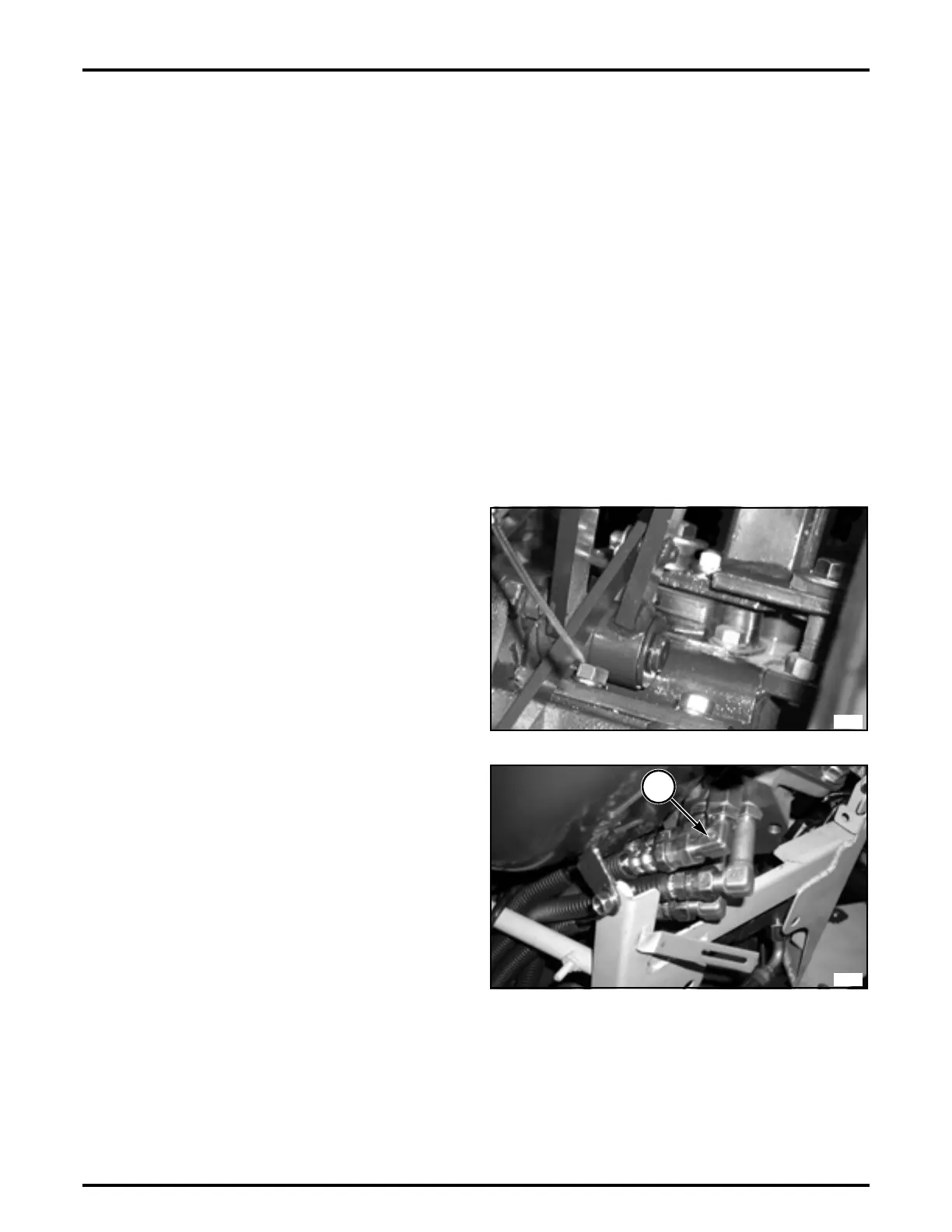

FIG. 26: Remove the floor decks.
Disconnect the hand brake wire.
Close the fuel cock located on the fuel filter. Disconnect
the fuel hose between fuel filter and fuel pump.
Disconnect the fuel return hose.
FIG. 27: Disconnect hydraulic hose (1) which connects
the orbit roll with the reducing valve.
FIG. 26
i-9776
FIG. 27
1
i-9777
