Splitting the Tractor

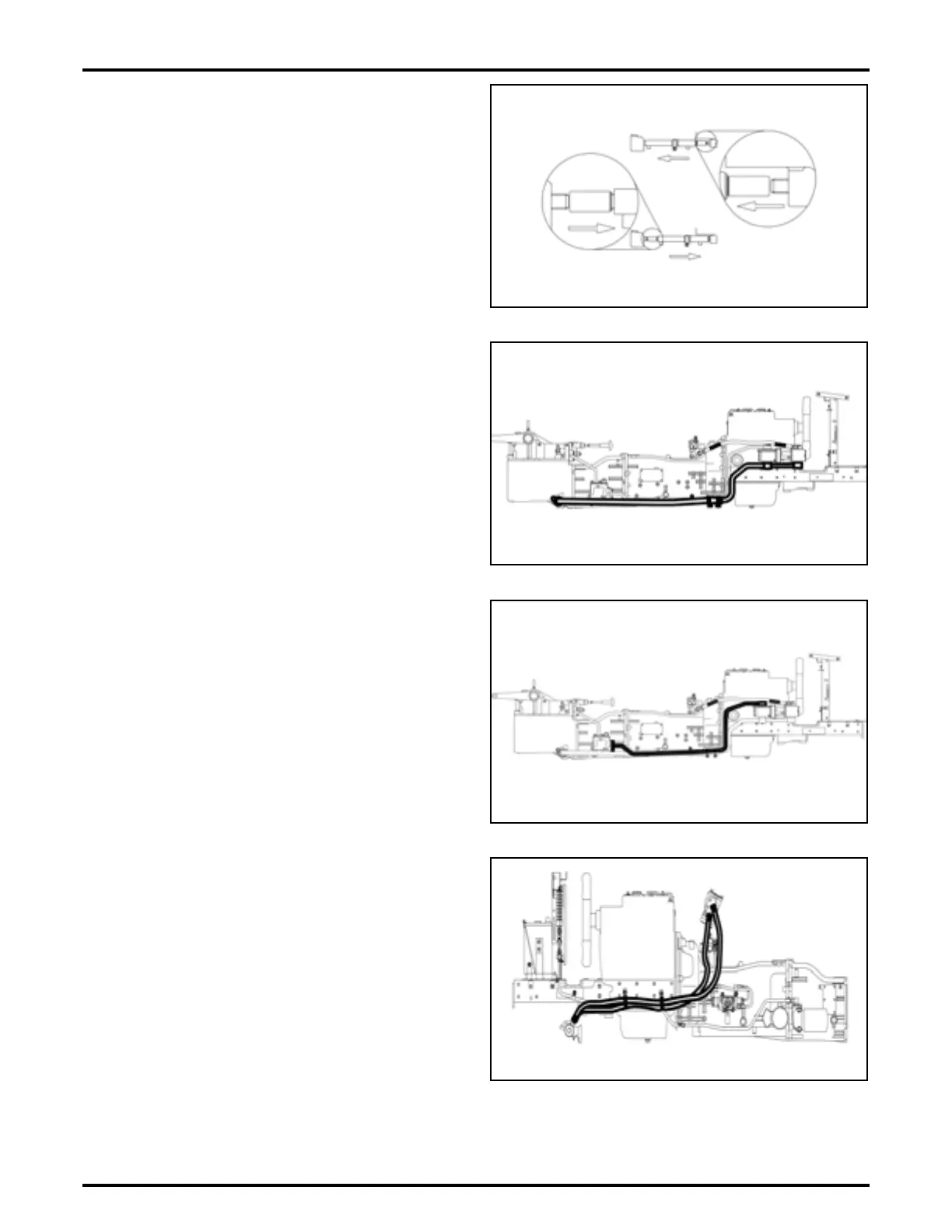

FIG. 36: Slide couplers forward on shaft and remove
shaft.
Drain transmission oil.
FIG. 37: Remove the suction pipe.
FIG. 38: Remove the delivery pipe.
FIG. 39: Disconnect hydraulic hoses for power steering
from the power steering cylinder.
