AGCO Challenger MT945B User Manual

79026547 Rev. A 01-17
Introduction
Constant Torque Hose Clamps
Due to extreme temperature changes, hose will heat set.
Heat setting can cause hose clamps to loosen. Loose
hose clamps can result in leaks. Constant torque of hose
clamp helps prevent leaks.

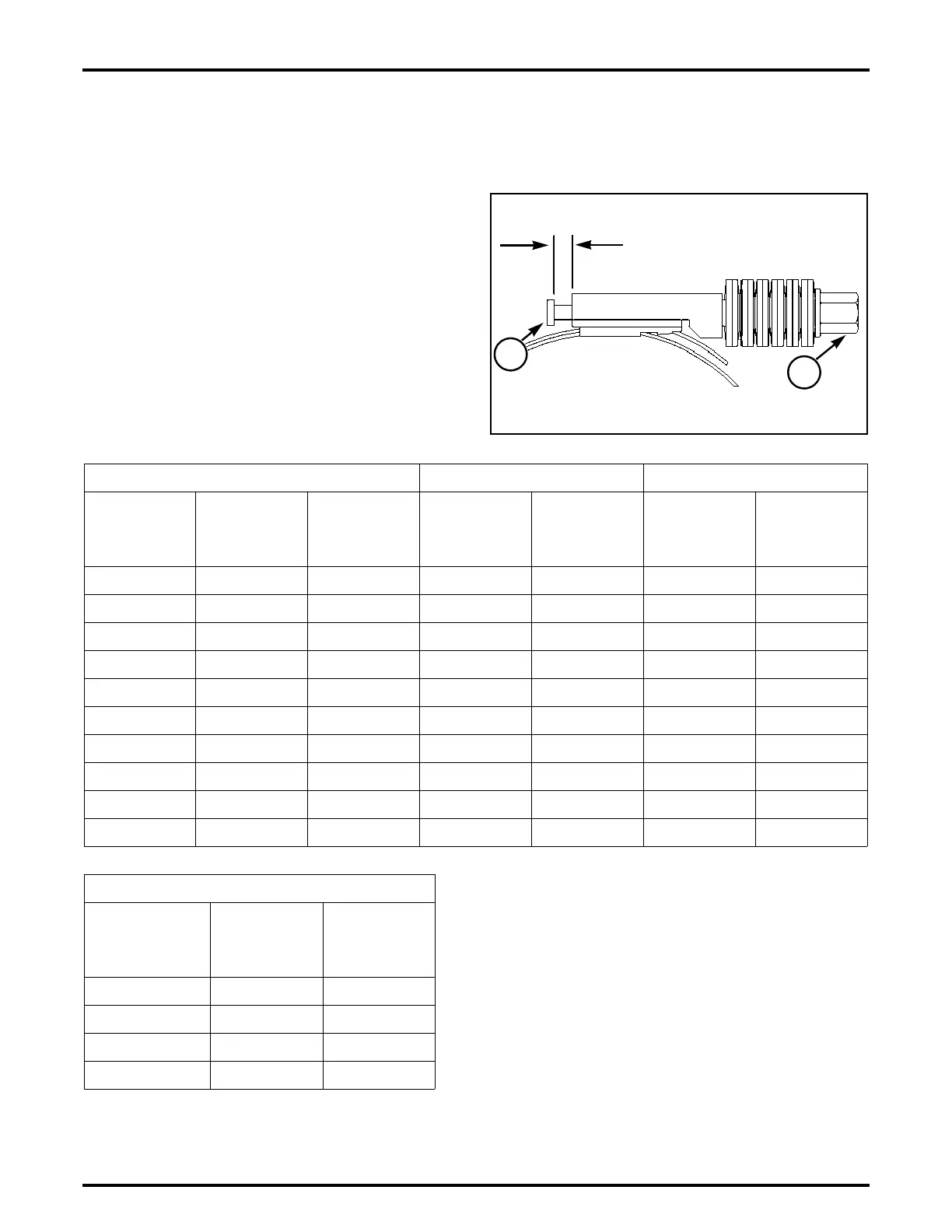

FIG. 32: Constant torque hose clamp is installed
correctly under the following conditions:
• Screw tip (1) extends 6.35 mm (.25 inch) (A) beyond
housing.
• Belleville washers are collapsed nearly flat after
screw (2) is tightened to a torque of 11 Nm (8.1 lb/ft).
FASTENERS INFORMATION
Metric Fasteners
Assembly Torque for Metric Fasteners
FIG. 32
1
2
A
N022003001
Standard High Low
Thread Size To rque
Pound Feet
Lb. Ft.
Torque
Newton
Meters
Nm
To r qu e
Pound Feet
Lb. Ft.
Torque
Newton
Meters
Nm
Torque
Pound Feet
Lb. Ft.
Torque
Newton
Meters
Nm
M6 x 1 9 ± 1 12 ± 3 10 ± 1 13 ± 3 4 ± .5 6 ± 1
M8 x 1.25 21 ± 2 28 ± 7 22 ± 2 30 ± 7 11 ± 1 15 ± 3
M10 x 1.5 41 ± 4 55 ± 10 44 ± 4 60 ± 12 22 ± 2 30 ± 7
M12 x 1.75 75 ± 8 100 ± 20 80 ± 8 105 ± 20 35 ± 4 50 ± 10
M14 x 2 120 ± 12 160 ± 30 130 ± 10 175 ± 30 60 ± 5 80 ± 15
M16 x 2 175 ± 15 240 ± 40 200 ± 20 270 ± 40 90 ± 10 125 ± 20
M20 x 2.5 340 ± 35 460 ± 60 390 ± 40 530 ± 70 185 ± 20 250 ± 40
M24 x 3 590 ± 60 800 ± 100 665 ± 65 900 ± 100 315 ± 30 425 ± 50
M30 x 3.5 1180 ± 120 1600 ± 200 1330 ± 130 1800 ± 200 625 ± 60 850 ± 100
M36 x 4 2000 ± 200 2700 ± 300 2285 ± 230 3100 ± 350 1100 ± 110 1500 ± 200
Standard Taperlock Studs
Thread Size Torque
Pound Feet
Lb. Ft.
Torque
Newton
Meters
Nm
M6 6 8
M8 13 17
M10 26 35
M12 48 65
