AGCO Challenger MT945B - Page 39

Engine Component Removal and Installation
02-10 79026547 Rev. A

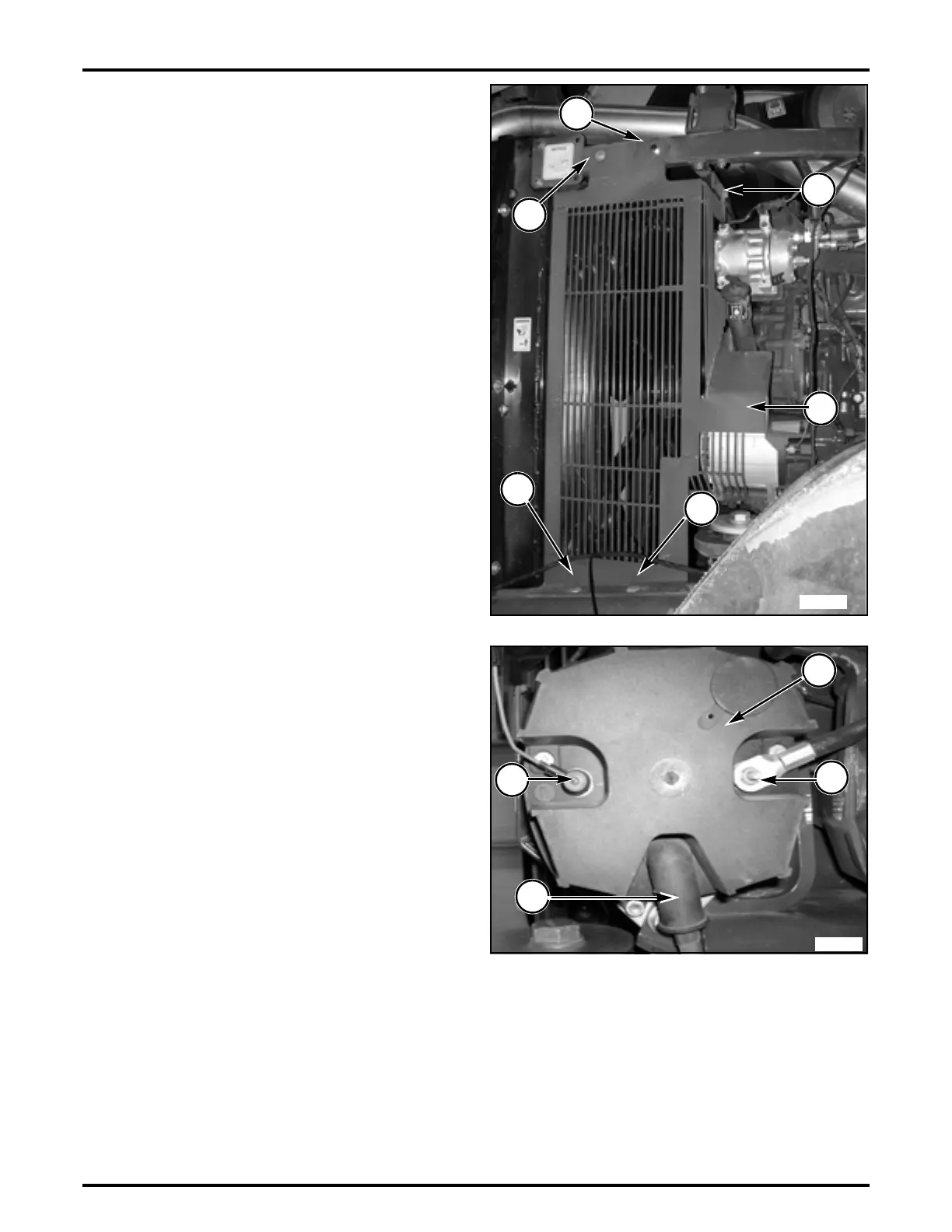

FIG. 14: Remove the guard.
Remove bolts (1). Remove guard (2).
FIG. 15: Remove wiring:
Mark and remove wiring (1), (2), and (3) from alternator
(4).
FIG. 14
M5266002
1
1
1
1
1
2
FIG. 15
1
2
4
3
M5266001
