Engine Component Removal and Installation

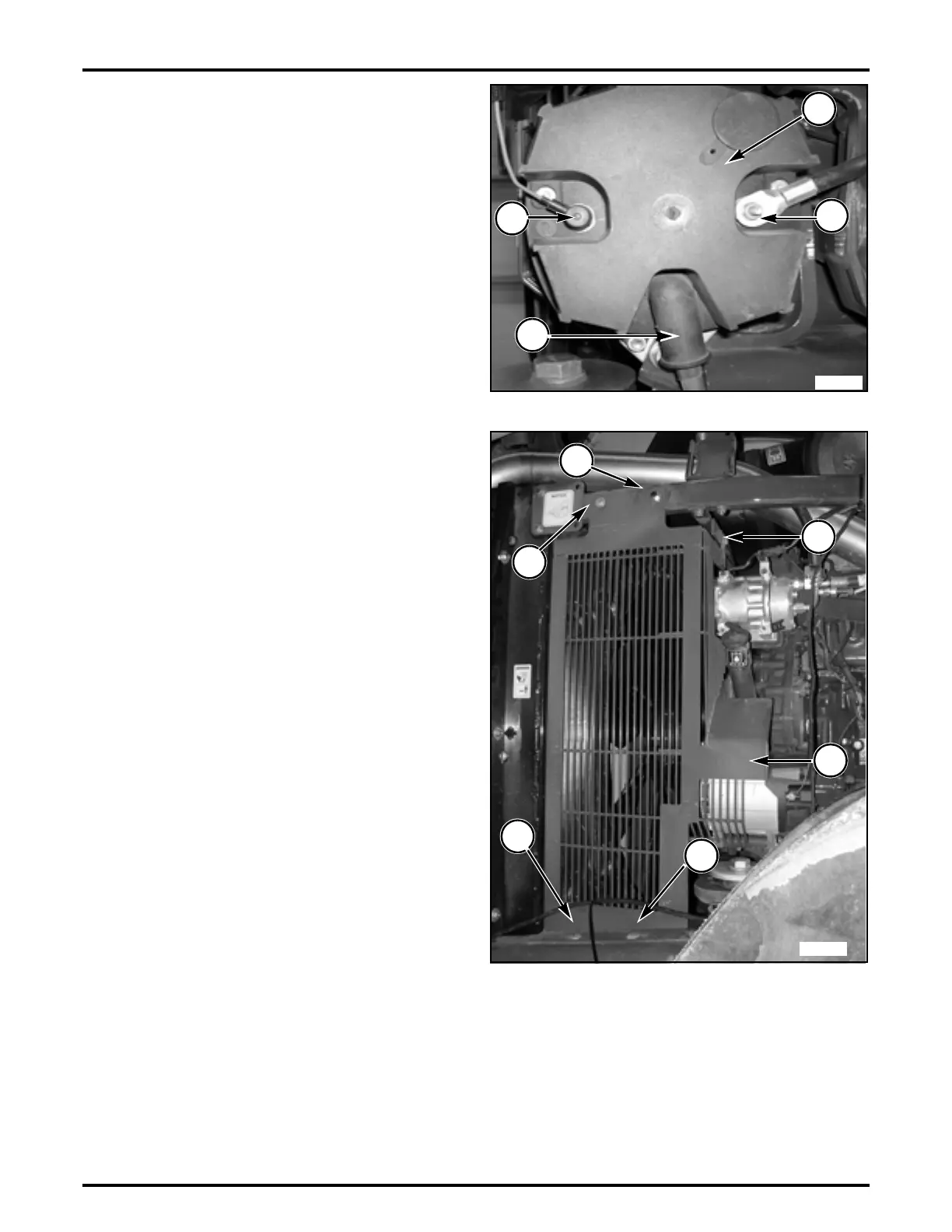

FIG. 21: Install wiring.
Mark and remove wiring (1), (2) and (3) from alternator
(4).
Connect electrical wires (1), (2) and (3) to posts on back
of alternator (4).
Position protective boot over power terminal(2).
FIG. 22: Install guard.
Install guard (2). Install bolts (1). Torque to 55 N.m. (40 lbf
ft).
