DD+DIS150.05E
Repair and Service
Electrical and mechanical codings, fuse tables and LED’s
Printed copies of this document are not controlled.
The reader should always refer to MedNet to ensure that they are working with the latest copy of the document.
Edition 1, Revision 0 Drystar 5302 Chapter 3.4 / 7

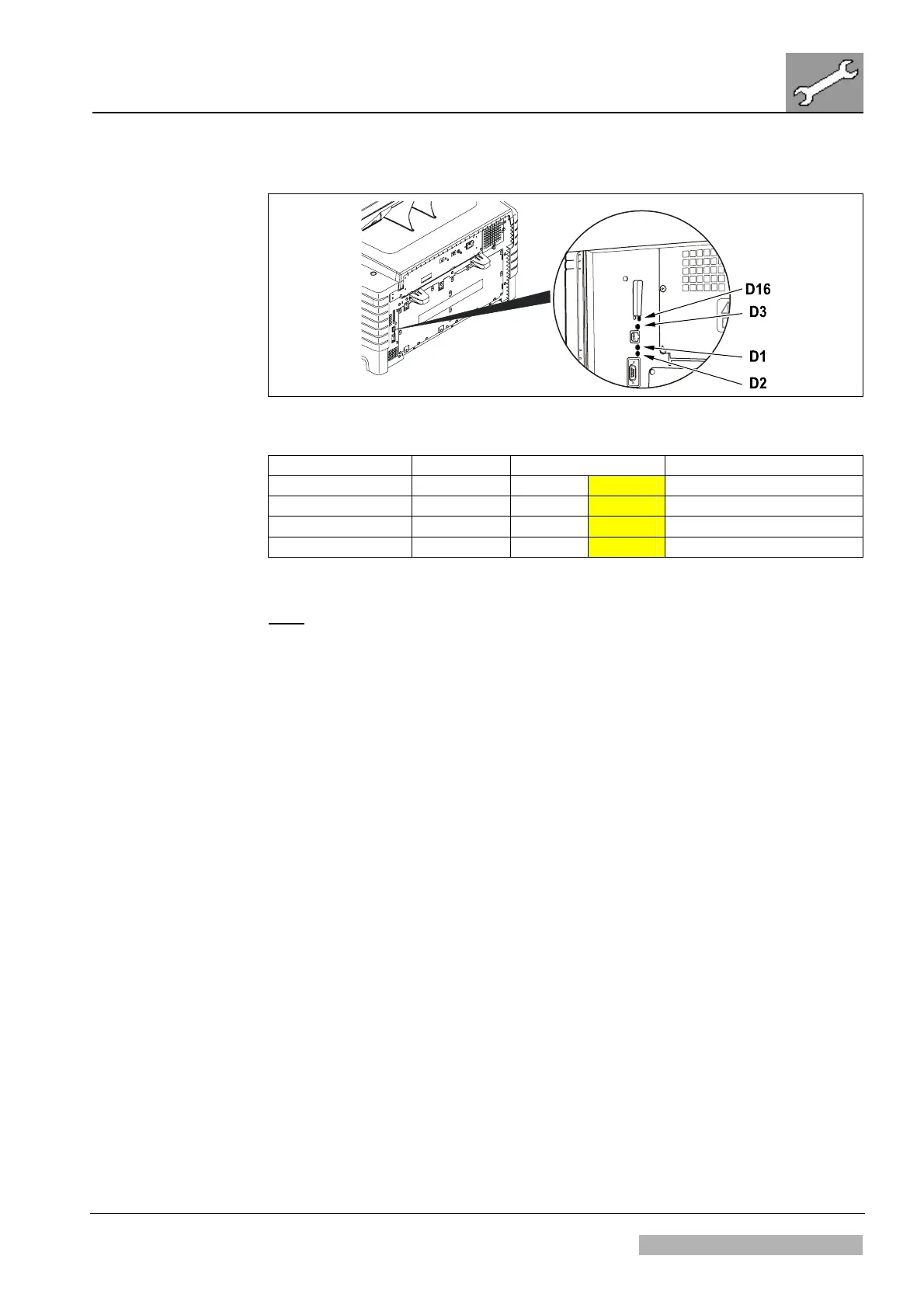

3.5 Rear panel
536634aa.cdr
Figure 4
Name Led Color Function
NTRAFFIC D1 yellow Network activity
NGOOD_LINK D2 yellow Network connected
100MBit_speed D3 yellow High speed network
IDE_DASP D16 yellow IDE activity
Note: These LEDs are part of the DEVIL board (refer to 3.1).
2005-09-09 (Type 5366/100) Agfa Company Confidential
