1.2 SYSTEM CONFIGURATION

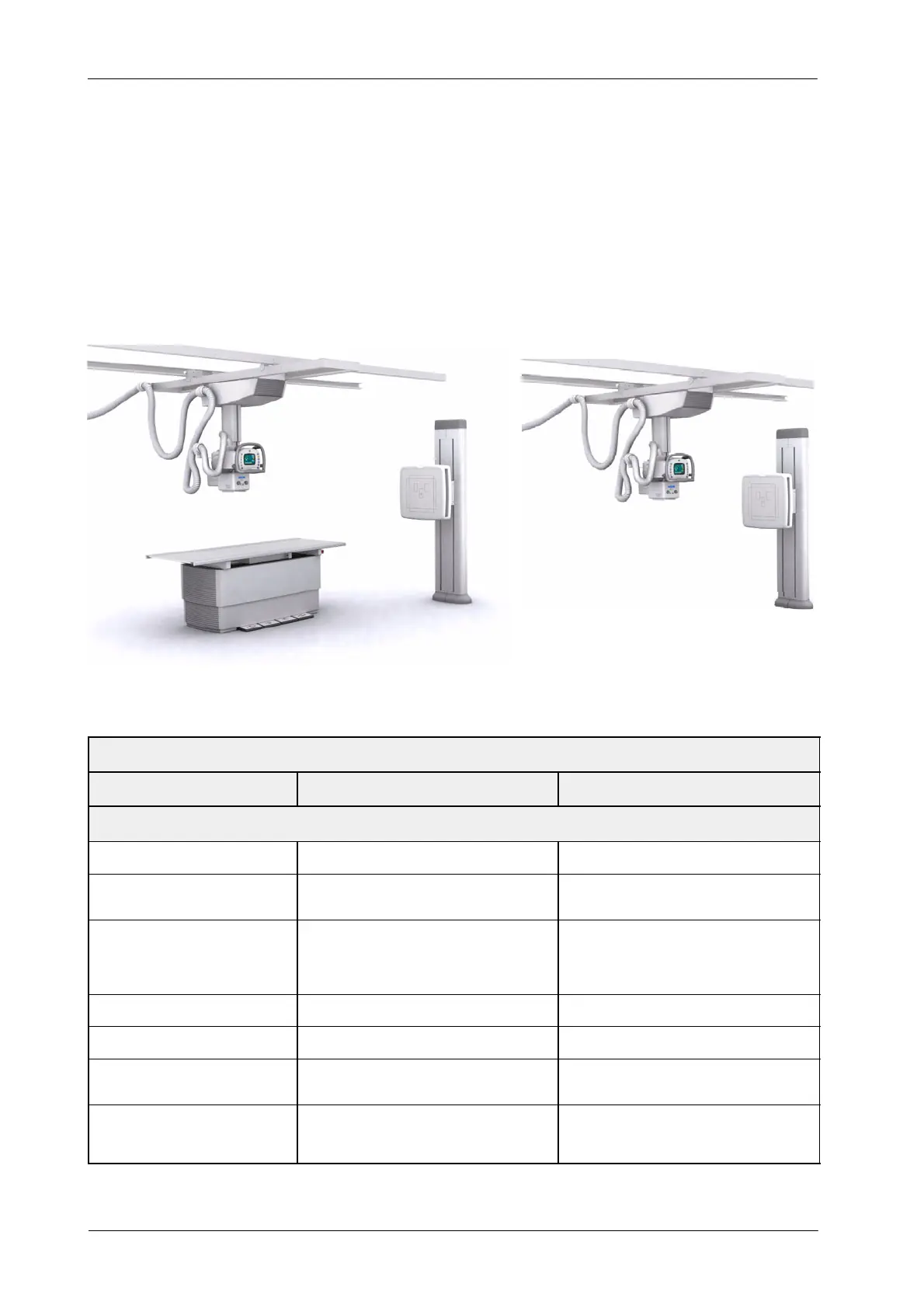

Illustration 1-1
DX-D 600 X-ray Systems
Single PanelDouble Panel
DX-D 600 SYSTEMS
COMPONENTS S EMI -AUTOMATIC AU TOMATIC
Ceiling Suspension
Control Console Touchscreen Control Console Touchscreen Control Console
Collimator
Ralco R225DHHS Manual Collimator
Ralco R225ACS Automatic Collimator
Ralco R225ACS Automatic Collimator
X-Ray Tubes
Canon E7252X
Canon E7254FX
Canon E7869XX
Canon E7884X
Canon E7252X
Canon E7254FX
Canon E7869XX
Canon E7884X
Longitudinal Rails 3.4/4.0/4.6/5.3/6m 3.4/4.0/4.6/5.3/6m
Transverse Rails 2.0 / 2.25 / 2.5 / 2.75 / 3.0 / 3.5 m 2.0 / 2.25 / 2.5 / 2.75 / 3.0 / 3.5 m
Movements policy
Manual movements and
motorized movement only in vertical axis
Manual movements and
motorized movements in all axes
Automatic Movements
Auto-tracking just along vertical axis
of the Ceiling Suspension
Auto-positioning
Auto-tracking
Auto-centering
