DX- D 600
User Manual
0242F EN 20181218
96
4.2.5 POSITION. SEMI-AUTOMAT IC SYSTEM AUTO-POSITIONING
As the Semi-automatic Ceiling Suspension is NOT motorized in all axes, the
Auto-positioning function is possible only in the Vertical Axis. Therefore, this
feature operation is dif ferent to the described for the Automatic Ceiling
Suspension.
Configure directly in the Position screen of the Control Console the X-ray T ube
position manually or using any Auto-position. Up to 16 Auto-positions can be
programmed in the field, each one refers to configured parking positions of the
X-ray Tube and of the DR Detectors (RAD Table DR Detector and RAD W all Stand
DR Detector). With the Auto-position, the Tube position is not referenced to any
specific Workstation, so all or just some of the available axes of the X-ray Tube
and DR Detectors can be configured on each Auto-position, taking into account
that only the vertical axes of the X-ray Tube and RAD W all Stand are motorized;
so any position configured in any other axis must be completed manually.
Auto-positions are intended to be used as parking positions or to
work with Direct Workstation. For a complete positioning of the
Ceiling Suspension, use the Programmed Positions.
Remember to get the X-ray Tube at the correct angulation before
executing any auto-position that involves the Wall Stand. Alpha
Axis is not motorized.
The Auto- positions are configured by the Service engineer and
cannot be modified directly by the user. To modify Auto-positions,
contact Service.

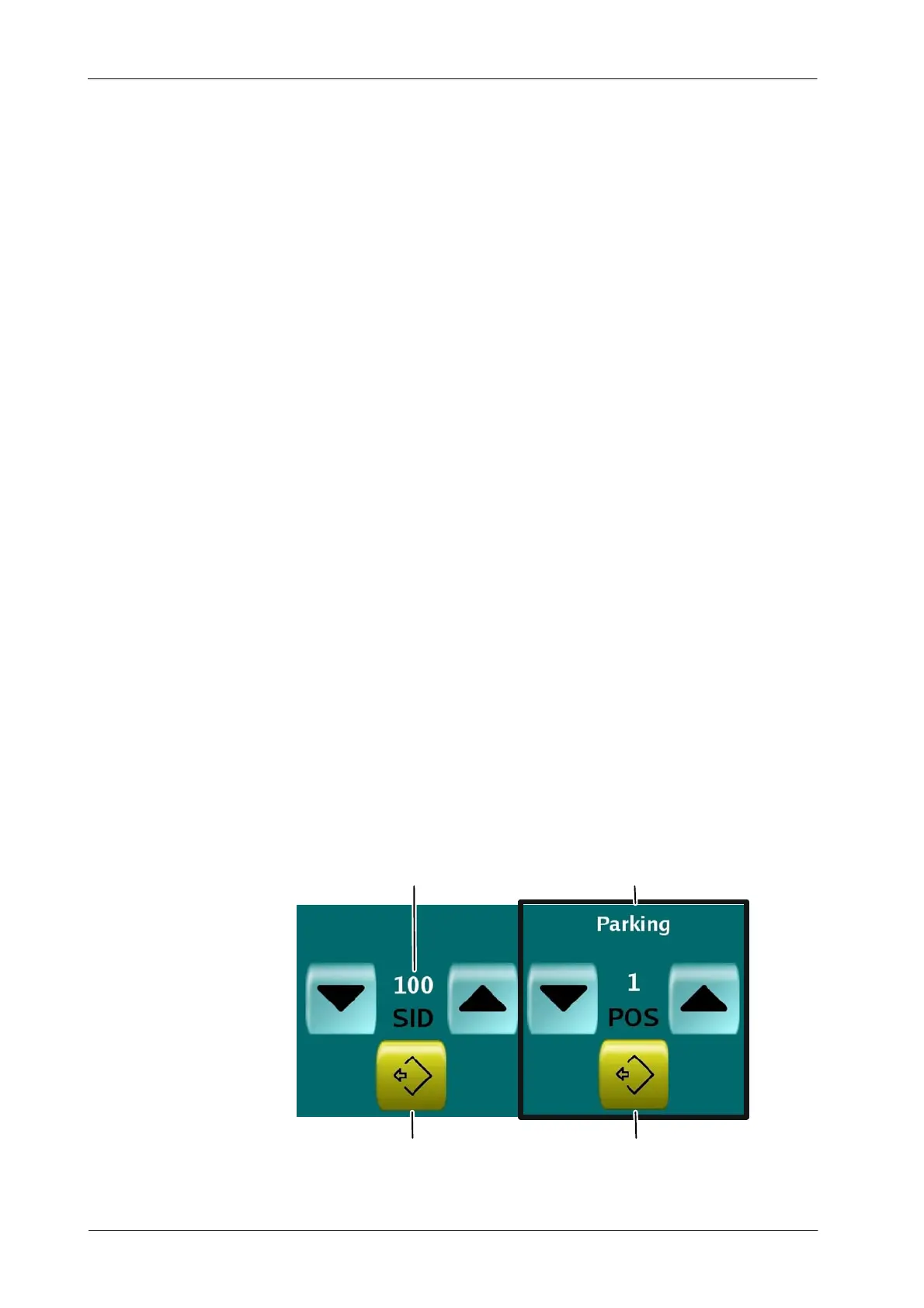

Illustration 4-28
Position Display Options
Controls for Manual SID
Validate Manual Position Validate Auto-position
Auto-position Controls
Note .
Note .
Note .
