6.9 ACCESSORIES
The RAD Wall Stand DR is provided with two dif ferent models of overhead
patient support, both are used for a correct positioning of patients. The patient
can hold on to it to separate the arms from the chest, so it is highly
recommended for thorax.
6.9.1 OVERHEAD HANDS SUPPORT
This accessory is provided with two locking knobs that must be placed at each
lateral of the DR Detector Support. It can support a maximum load of 15 kg.
It can be installed at both sides of the DR Detector. To install it:
1. Loosen the locking knob.
2. Install the Overhead Arm Support in the holder.
3. Fix it with the locking knob.
Illustration 6-13
Overhead Hands Support
The Support can be used in two different positions: Working position, at 0
o
, and
Parking, at +90
o
or -90
o
. When parked it must be always rotated to the opposite
of the DR Detector loading configuration.

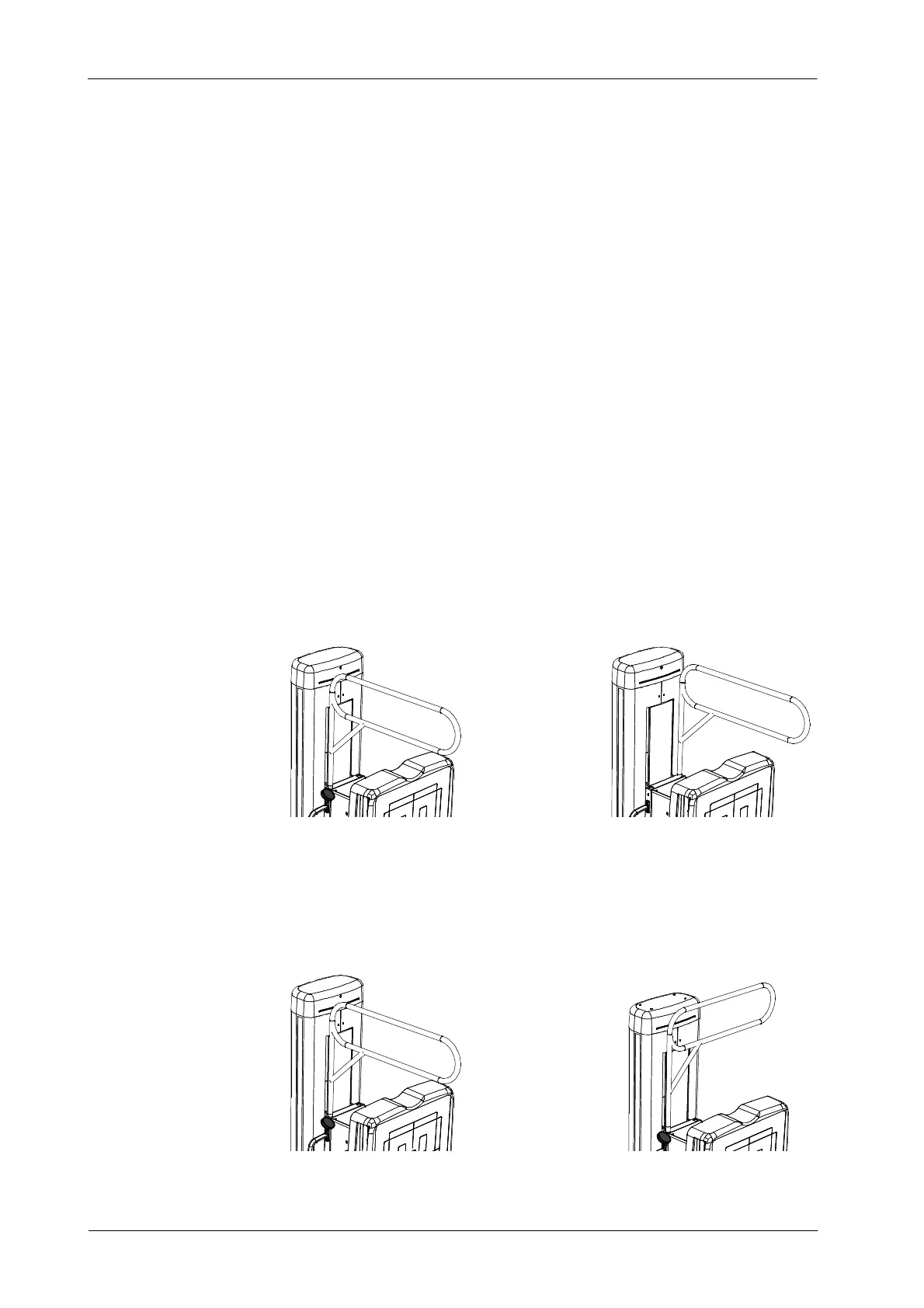

Illustration 6-14
Working and Parking Position
Working Position Parking Position
