Remember that the Patient Support is installed at the back of the cabinet of the
DR Detector, so it is not possible to tilt the DR Detector with it installed. It is
necessary to remove it from the Cabinet and then tilt.
It is also recommendable in all cases to rotate the DR Detector with the Patient
Support removed and never tilted, as the Support can crash with the carriage.

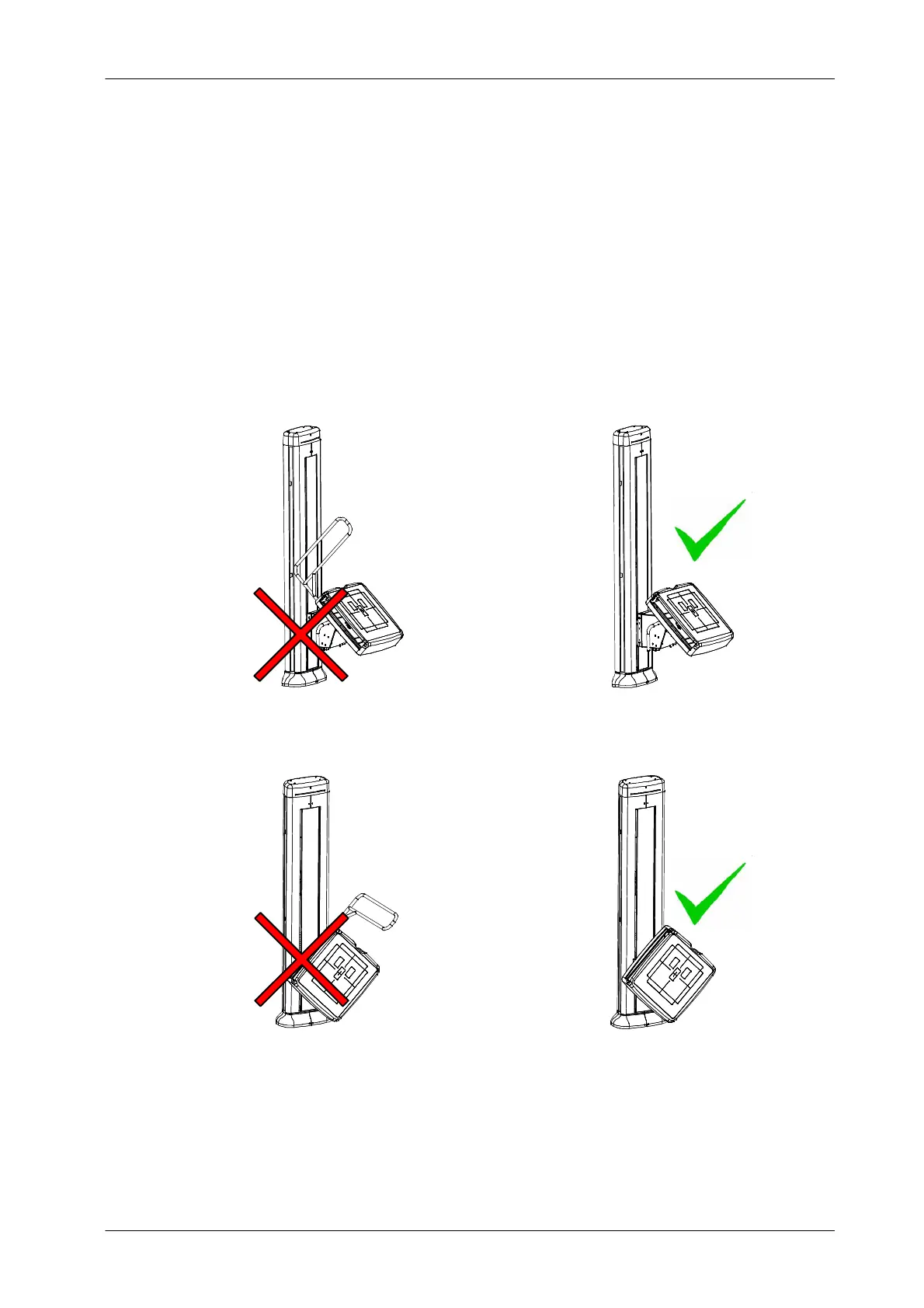

Illustration 6-18
Correct Tilting and Rotation Procedures
