SECTION 7 COLLIMATION
7.1 RALCO R225 AUTOMATIC COLLIMATOR
Ralco R225 Collimator operation is CanBus controlled by the
Ceiling Suspension. The Collimator operation with the Ceiling
Suspension is described on this Section.
Refer to the corresponding Collimator Manual for extended
information about operation or technical description needed to
maintain compliance with Standard IEC 60601-1- 3:2008.
Collimator controls consist of the following buttons and knobs:
1 COLLIMATOR DISPLAY 6 CHANGE OF FILTER
2 MANUAL BLADE CONTROLS 7 COLLIMATOR LAMP CONTROL (LED ON)
3 AUTOMATIC MODE INDICATOR (GREEN) 8 RETRACTABLE METRIC TAPE
4 BUSY MODE INDICATOR (RED) 9 LASER POINTER WINDOW
5 MANUAL MODE INDICATOR (YELLOW) 10 LASER POINTER ON/OFF BUTTON

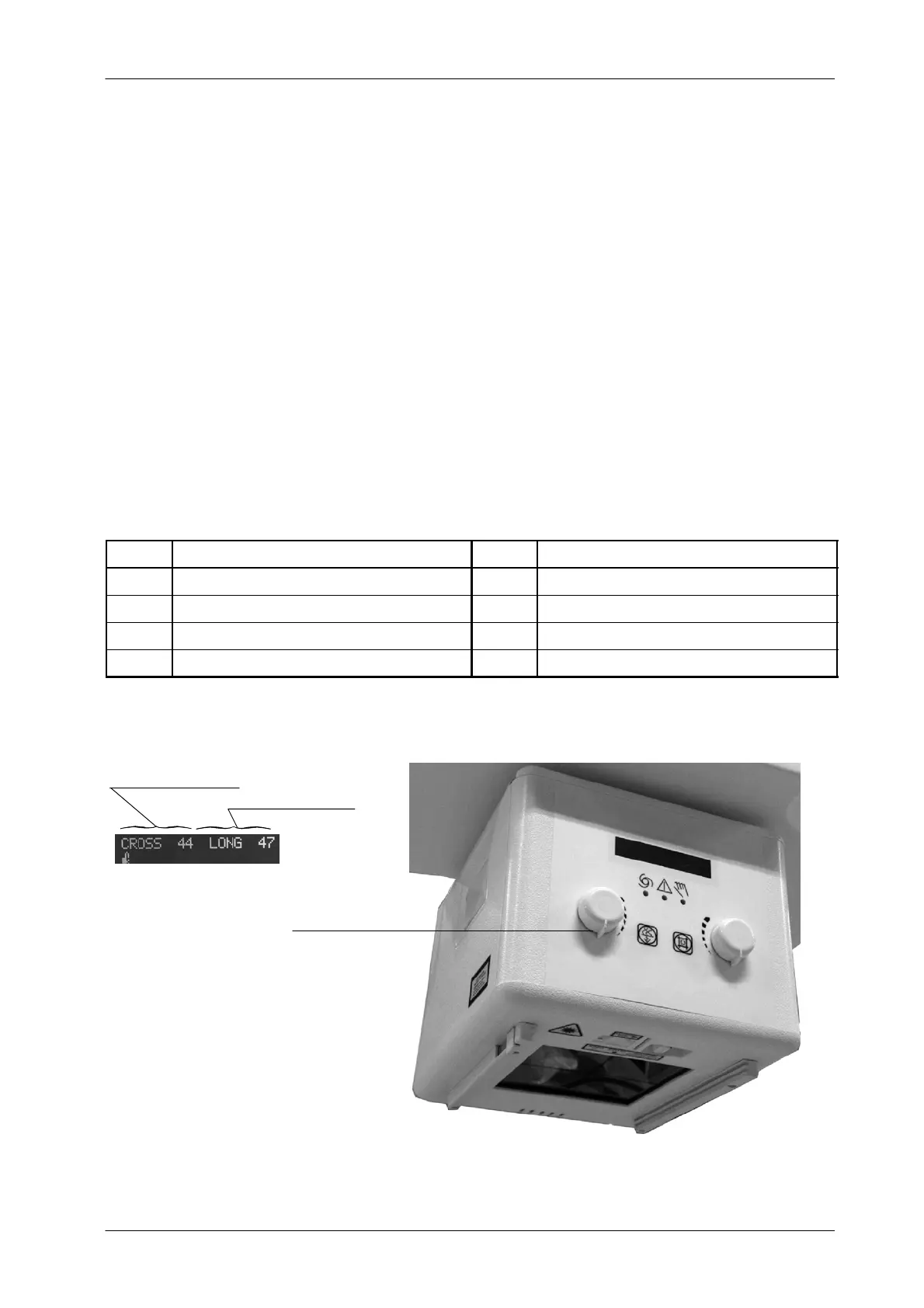

Illustration 7-1
Ralco R225 Automatic Collimator
6
2
3
4
5
7
Transverse Field Size
1
Manual Blade Knobs
2
8
9
10
Longitudinal Field Size
1
Note .
