DX- D 600
User Manual
0242F EN 20181218
167
RAD TABLE

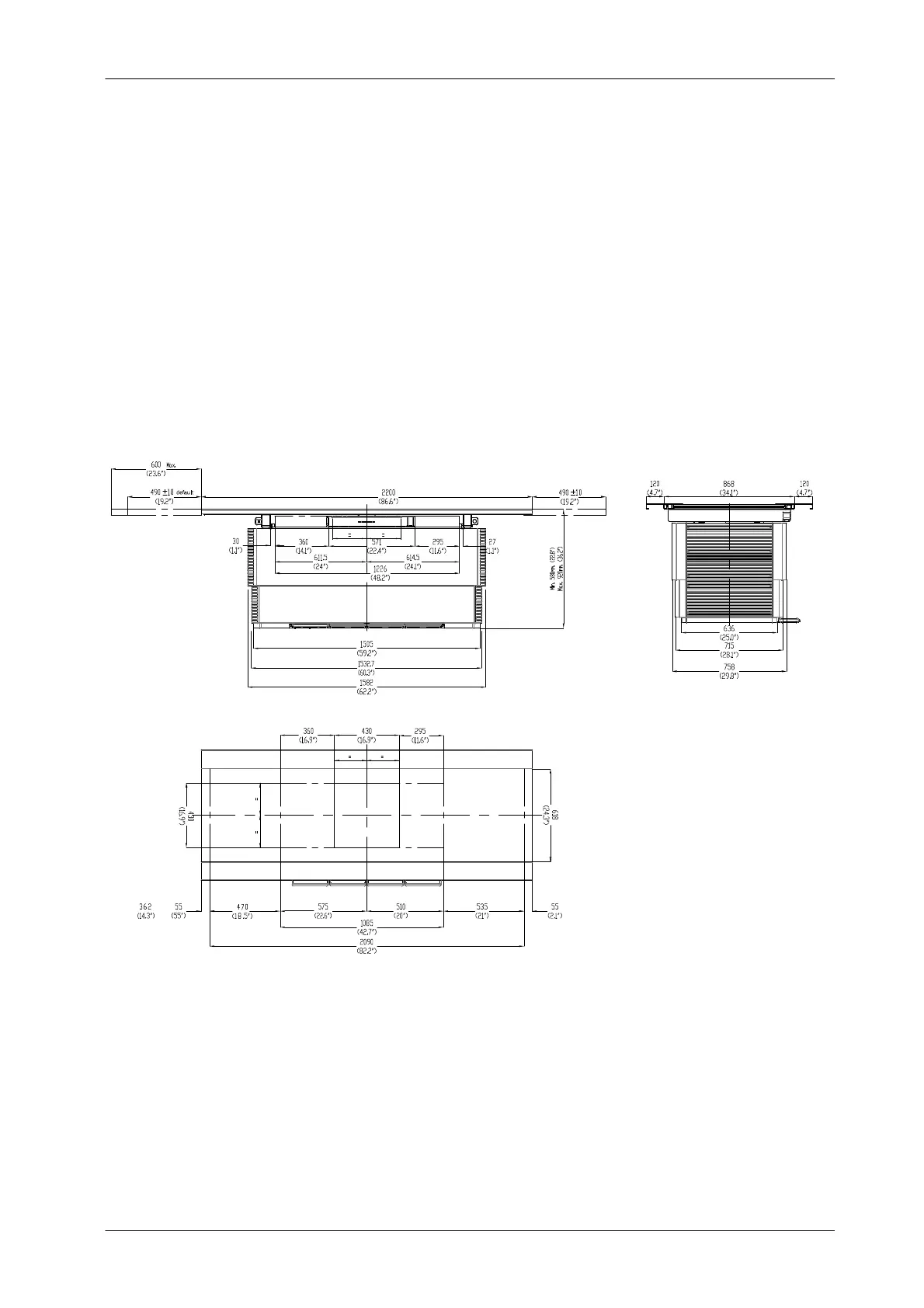

Illustration 11-1
RAD Table Dimensions and Travels with Fixed DR Detector
Tabletop travel is set by default at 490
¦ 10 mm (19.2” ¦ 0.4”) on
both sides. It is possible to enlarge the Tabletop displacement on
the left side to 600 mm (23.6”).
Note .
