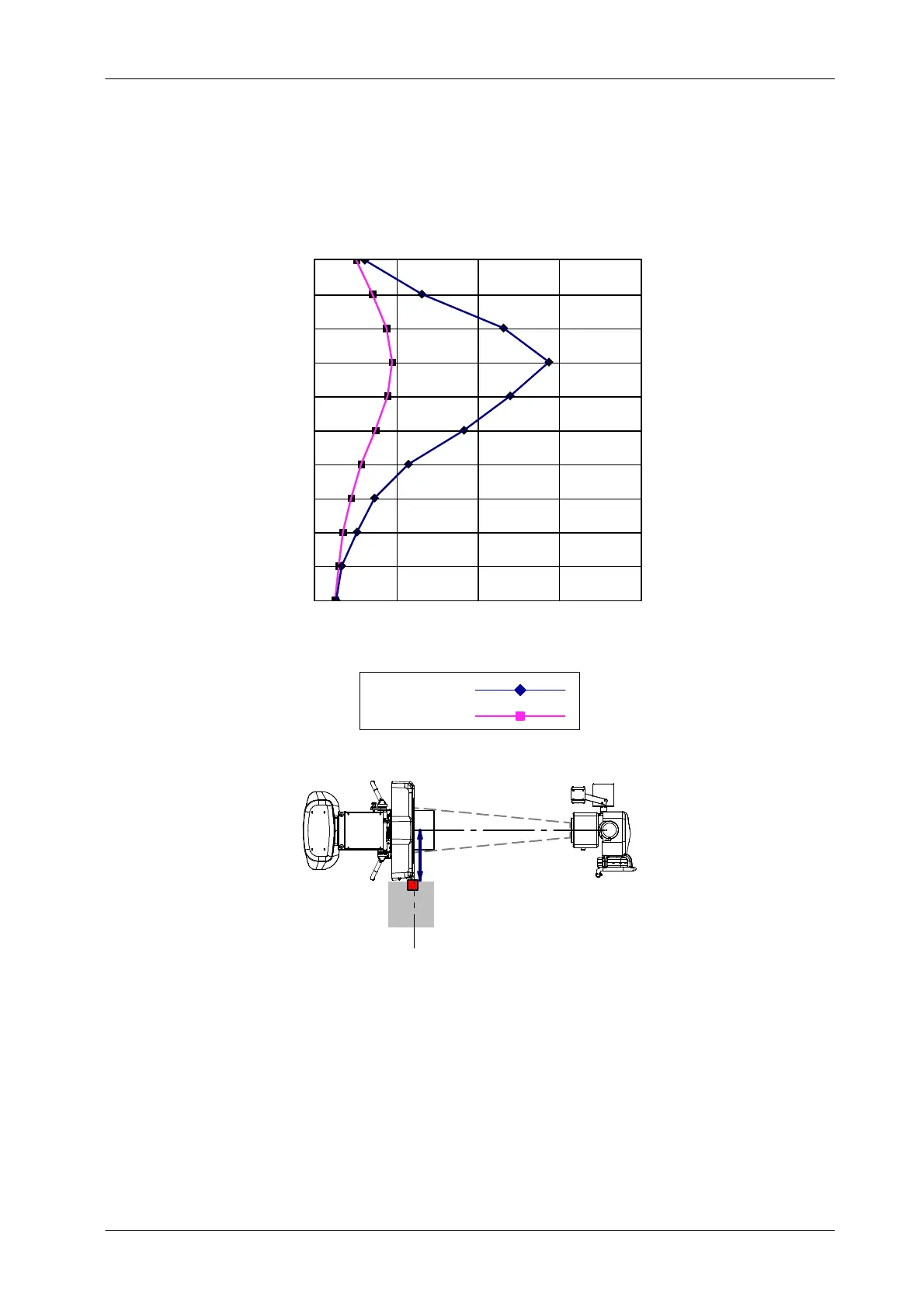

Illustration 2-3
Distribution of Stray Radiation with the Receptor in Vertical Left Position (S1)
HEIGHT (cm)
STRAY RADIATION (μGy/h)
0
20
40
60
80
100
120
140
160
180
200
0 10000 20000 30000 40000
S1 SID 50 cm
S1 SID 100 cm
S1
Phantom
SIGNIFICANT ZONE OF OCCUPANCY
ONTHELEFTSIDEOFTHERADWALL
STAND DR
