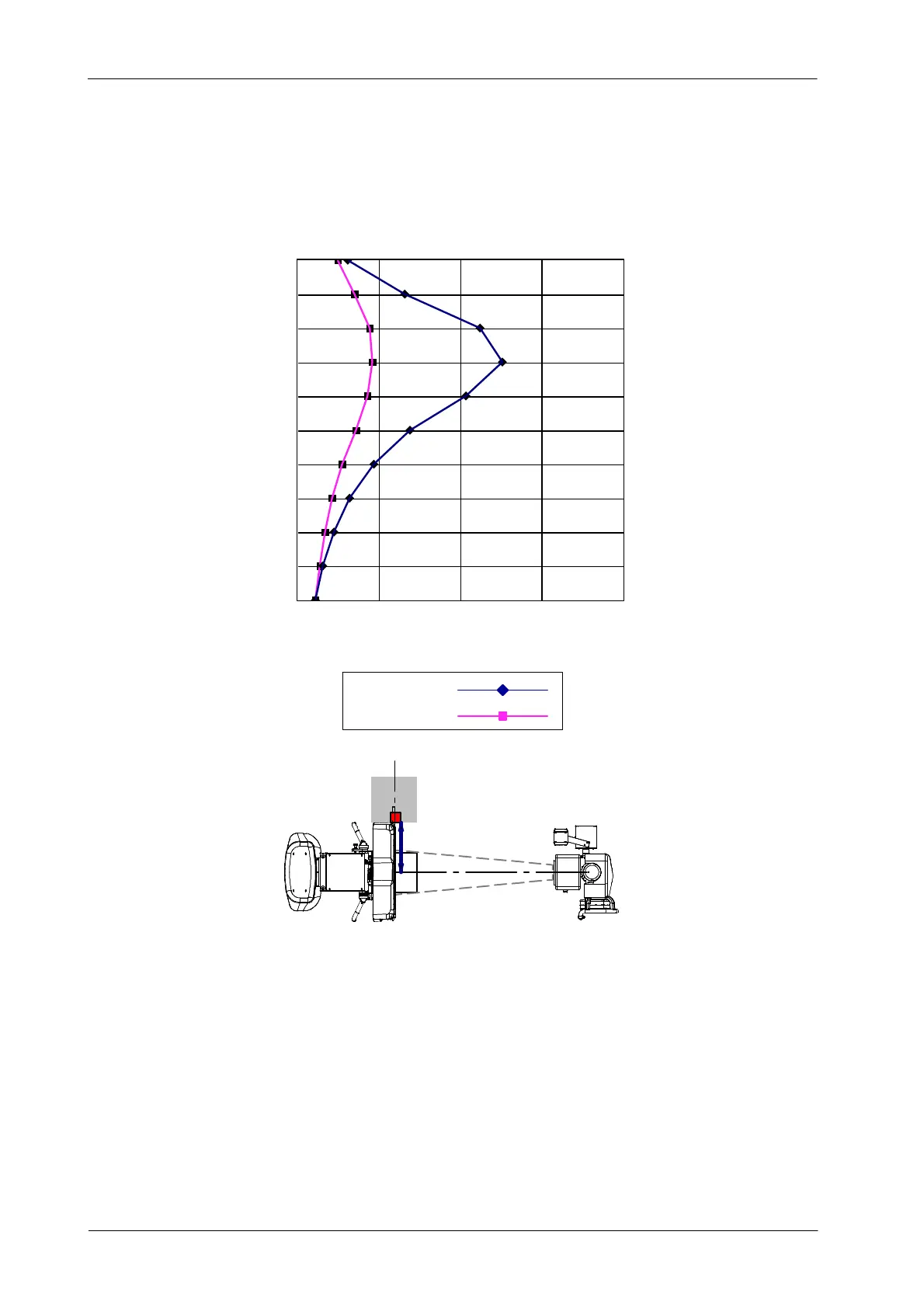

Illustration 2-4
Distribution of Stray Radiation with the Receptor in Vertical Right Position (S2)
HEIGHT (cm)
STRAY RADIATION (μGy/h)
0
20
40
60
80
100
120
140
160
180
200
0 10000 20000 30000 40000
S2 SID 50 cm
S2 SID 100 cm
S2
Phantom
SIGNIFICANT ZONE OF OCCUPANCY
ON THE RIGHT SIDE OF THE RAD
WALL STAND DR
