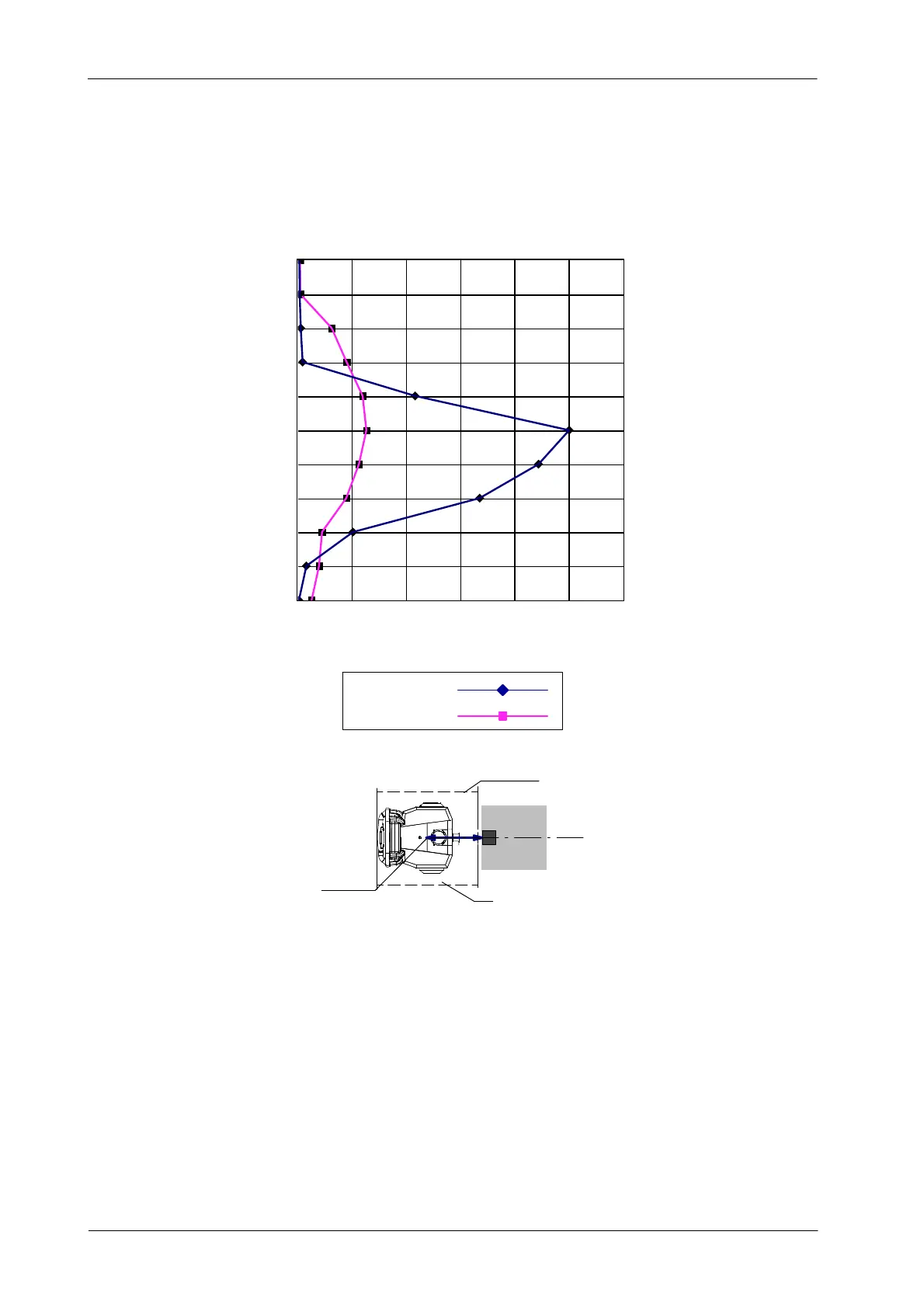

Illustration 2-8
Distribution of Stray Radiation with the Receptor in Horizontal Back Side Position (S6)
HEIGHT (cm)
STRAY RADIATION (μGy/h)
0
20
40
60
80
100
120
140
160
180
200
0 10000 20000 30000 40000 50000 60000
S6 SID 50 cm
S6 SID 100 cm
RAD TABLE
Focal Spot
X-ray Tube
S6
SIGNIFICANT ZONE OF OCCUPANCY
AT THE BACK OF THE RAD TABLE
