4. If the Semi-Automatic Ceiling Suspension is not in the correct position
in non motorized axes (Longitudinal, Transverse, Alpha or Beta), a
message will be displayed explaining the corrective action to be
completed. It is indicated first the Current Position and the Final Position
too. Place manually the Suspension in the correct position as indicated
in the Message.

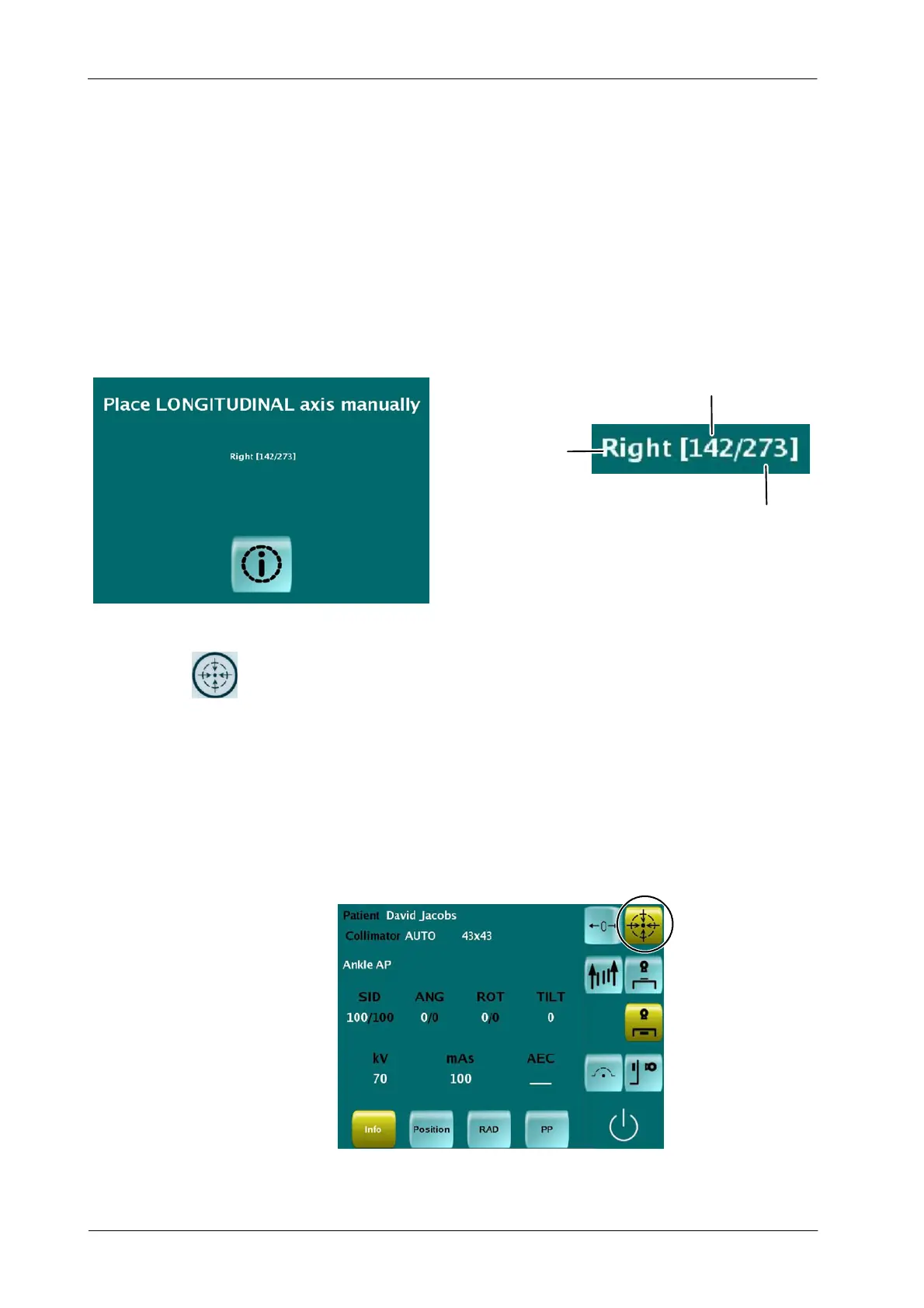

Illustration 4-19
Position Message for Semi-automatic System
Final Position
Current Position
Corrective Movement
Direction
5. Press and hold the Auto-center button of the Automatic Positioning
Control Box to complete the movement or, if available, in the Remote
Control.
6. The Collimator Lamp gets lighted to indicate the current position of the
X-ray tube.
7. Once the X-ray Tube is properly aligned and centered, the Auto-center
Control gets lighted.
Illustration 4-20
Ceiling Suspension and Table DR Detector Centered
