8 34980A Getting Started Guide
Installing a Terminal Block
Use the following steps to install an optional terminal block to a plug-in module. See page 7 to connect
your external field wiring to the terminal block.

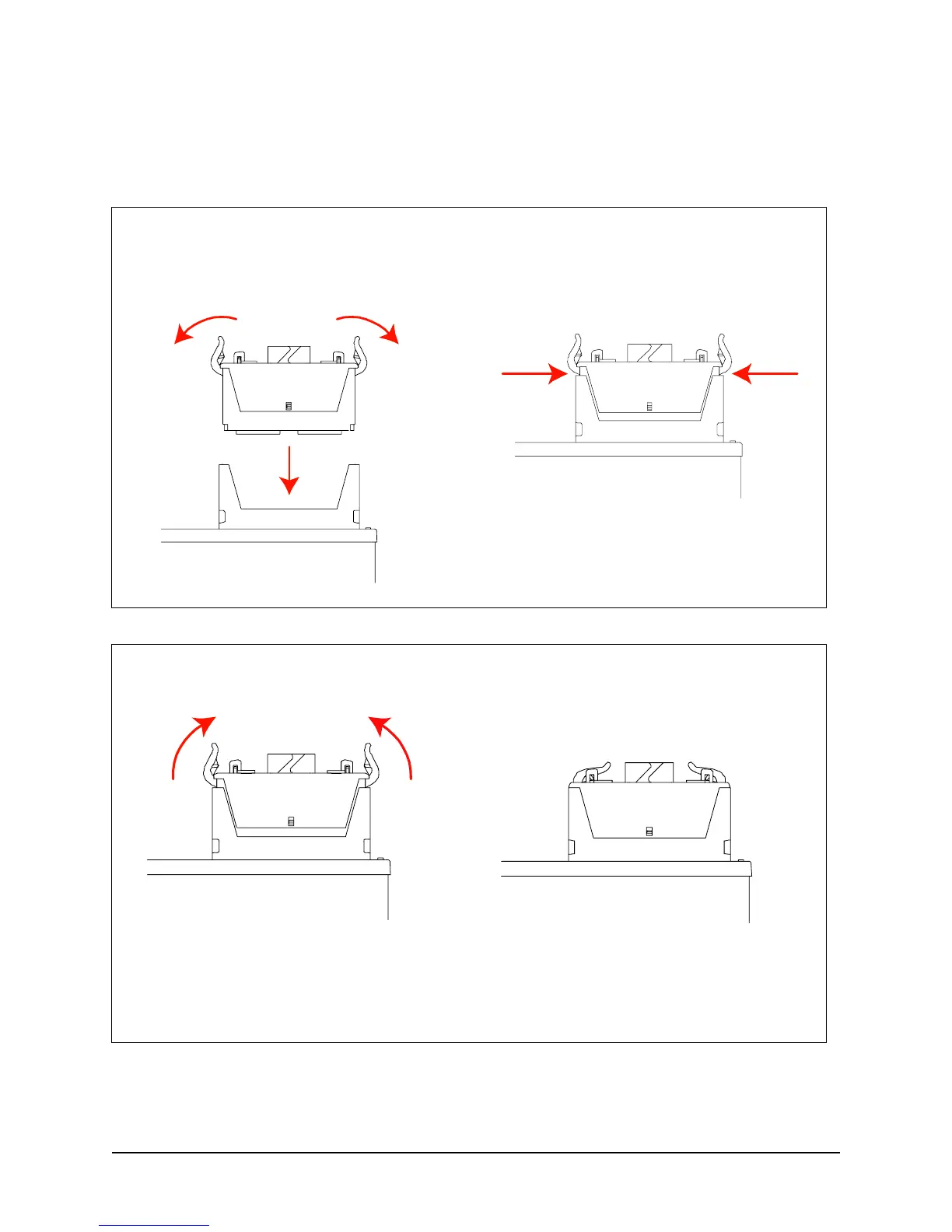

Step 1. Push the levers on the terminal
block to the fully-open position as shown
below. Then slide the terminal block into
the instrument-mounted support sleeve...
…until the terminal block stops at the
two points indicated by the arrows below.
Step 2. Carefully rotate the levers
upward as shown…
…until both levers are locked in the
closed position.
NEXT STEP:
Go to “Operating the Front
Panel Keyboard” on page 9.
34980A Mainframe
Support Sleeve
Terminal Block
