6 34980A Getting Started Guide
Installing a Module for Use with Terminal Blocks
All of the 34980A plug-in modules, except the RF and microwave modules, can be used with a
compatible terminal blocks (optional accessories 349
xx
T). The optional terminal blocks provide screw
terminals or solder cup connections for your external wiring. If you plan to use an optional terminal block,
follow the procedure below.

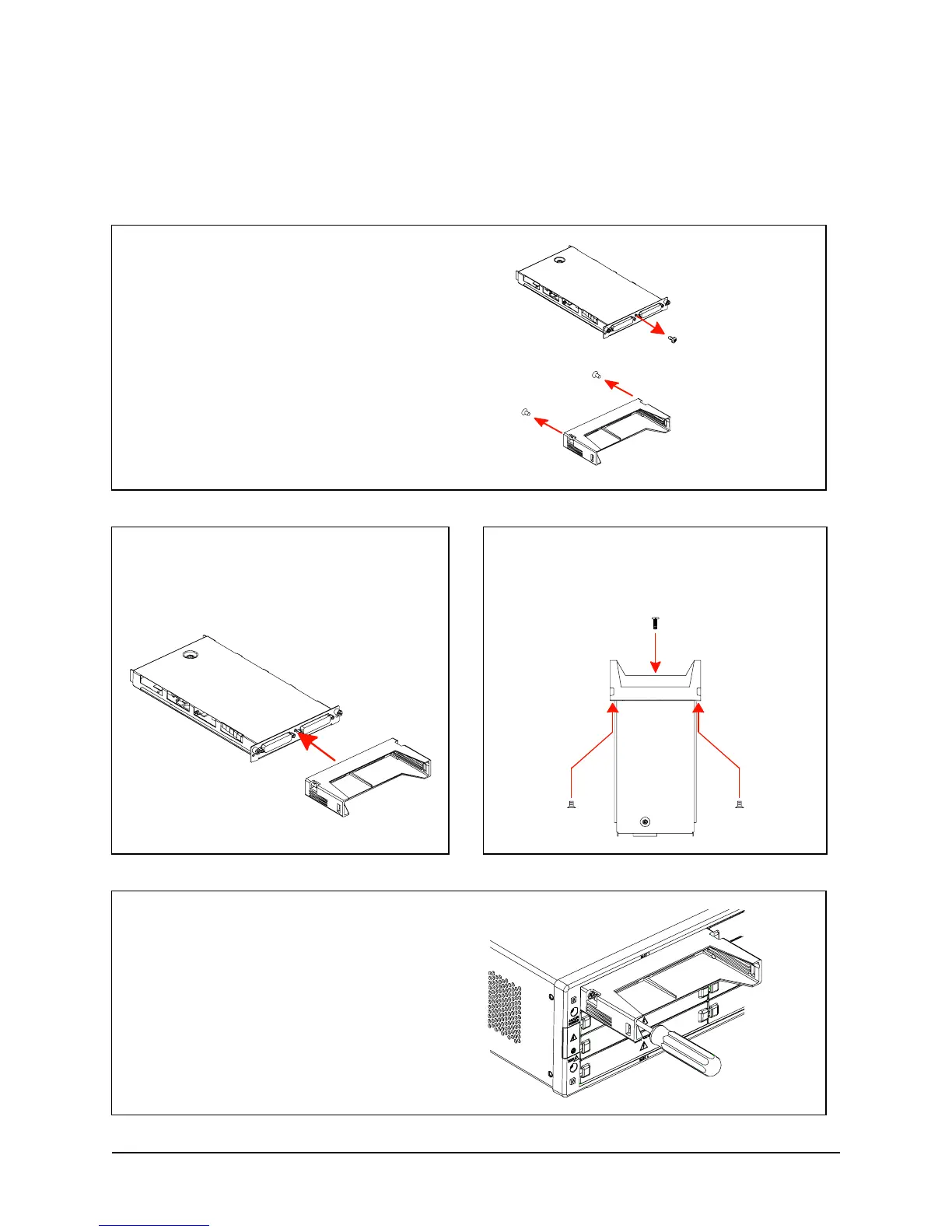

Step 1a. Using a Pozidriv #1 screwdriver,
remove the panhead grounding screw
located between the module connectors.
Step 1b. Remove the two flathead screws
from the support sleeve.
Step 2. Fit the terminal block support
sleeve against the module so the openings
on the sleeve line up with the connectors
and the center screw hole as shown.
Step 3. Replace the panhead screw.
Then replace and tighten the two flathead
screws to secure the sleeve to the module.
Step 4. Install the module into a
mainframe slot until it fully seats with the
backplane connector. Using a Pozidriv #1
screwdriver, tighten the two screws to
secure the module in the mainframe.
Installation is now complete.
NEXT STEP:
Go to “Wiring and Installing
a Terminal Block” on page 7.
