14 34980A Getting Started Guide
16. With the Channel key still
active, turn the knob between
channels 1016 and 1014 to
monitor the measurement
results for each channel.

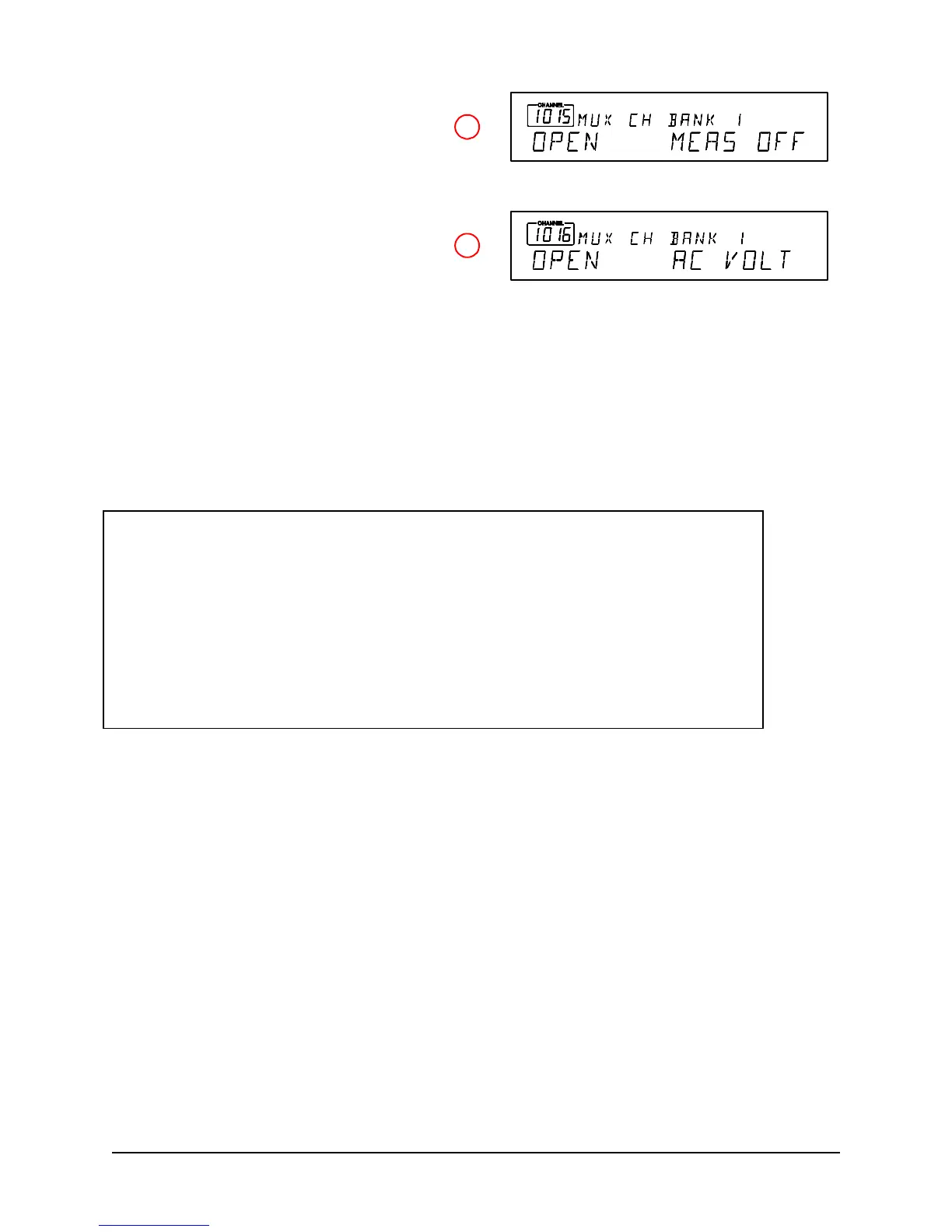

As you pass Channel 1015,
which is not configured for a
measurement, notice that the
associated channel relay is
open and measurement is off.
17. Press the Channel key so
the light is off. Notice that
Monitoring is now turned off,
but you can continue to view
the measurement parameters
on channels 1014 and 1016.
16
17
In This Example:
• You configured channel 16 for dc voltage measurements.
• With the Channel key (in Measure key group), you started, viewed results, and stopped
continuous dc voltage measurements on channel 16.
• You configured channel 14 for ac voltage measurements.
• With the Channel key (in Measure key group), you started, viewed results, and stopped
continuous ac voltage measurements on channel 14.
• You monitored channels with the Channel key (in Measure key group) activated.
Using the knob, you scrolled between channels 14 and 16 to alternatively start, view,
and stop continuous measurements on the channels.
To Next Page
