Agilent Technologies 83640B Troubleshooting Guide

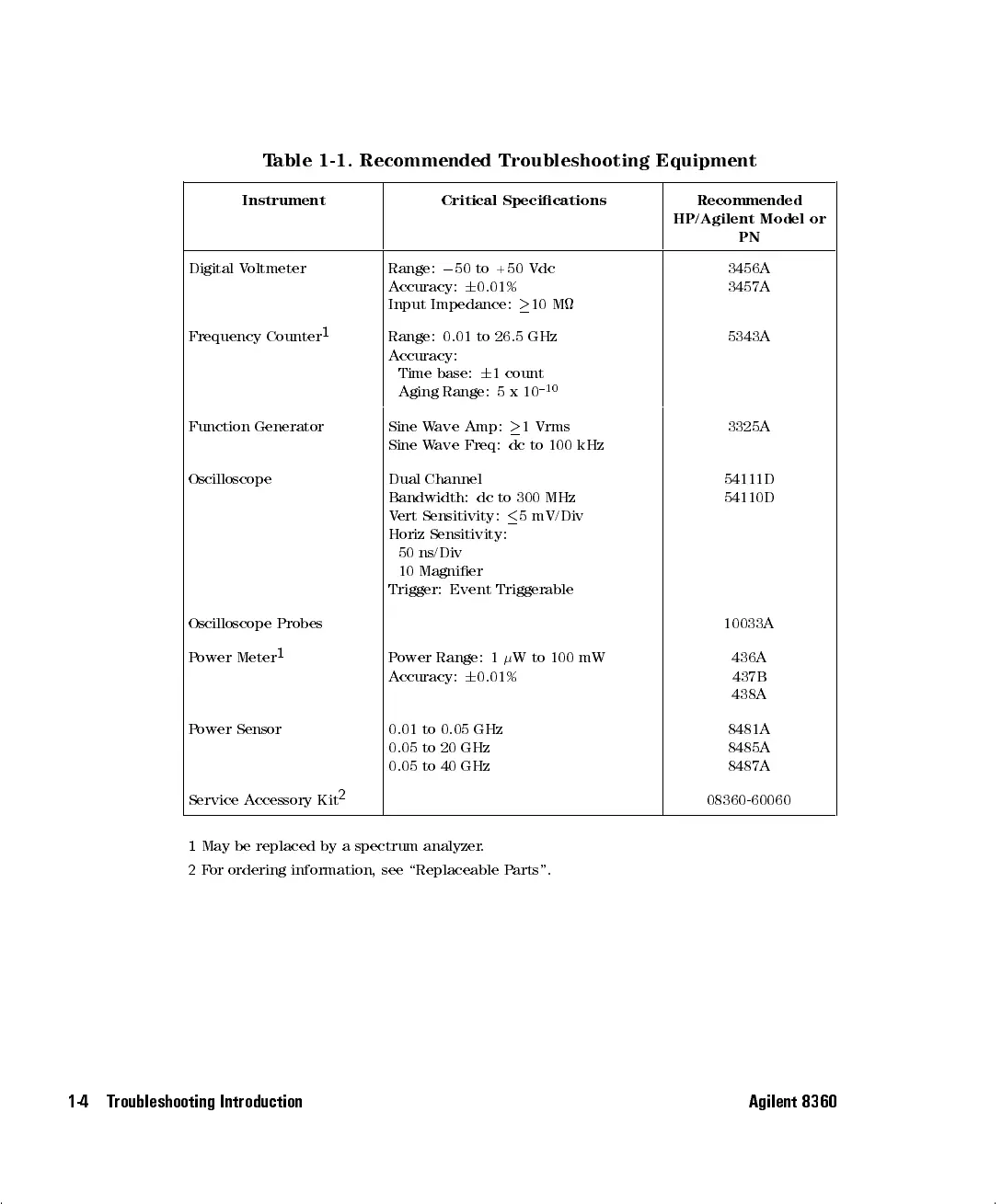

Table 1-1. Recommended Troubleshooting Equipment
Instrument Critical Specications Recommended
HP/Agilent Model or
PN
Digital Voltmeter Range: 0 50 to +50 Vdc
Accuracy: 6 0.01%
Input Impedance:  10 M
3456A
3457A
Frequency Counter
1
Range: 0.01 to 26.5 GHz
Accuracy:
Time base: 6 1 count
Aging Range: 5 x 10
{10
5343A
Function Generator Sine Wave Amp:  1 Vrms
Sine Wave Freq: dc to 100 kHz
3325A
Oscilloscope Dual Channel
Bandwidth: dc to 300 MHz
Vert Sensitivity:  5 mV/Div
Horiz Sensitivity:
50 ns/Div
10 Magnier
Trigger: Event Triggerable
54111D
54110D
Oscilloscope Probes 10033A
Power Meter
1
Power Range: 1  W to 100 mW
Accuracy: 6 0.01%
436A
437B
438A
Power Sensor 0.01 to 0.05 GHz
0.05 to 20 GHz
0.05 to 40 GHz
8481A
8485A
8487A
Service Accessory Kit
2
08360-60060
1 May be replaced by a spectrum analyzer.
2 For ordering information, see \Replaceable Parts".
