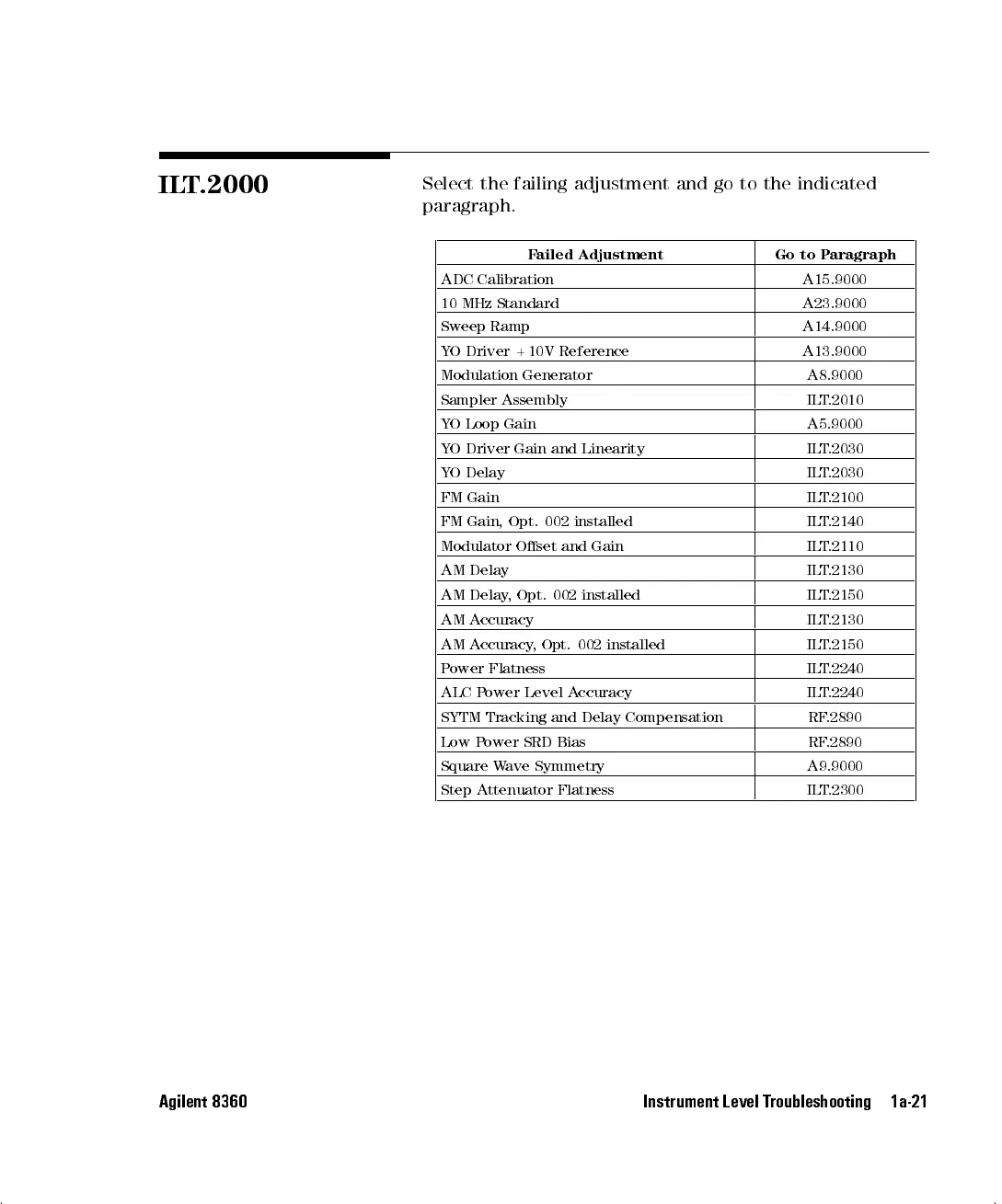

ILT.2000
Select the failing adjustment and go to the indicated
paragraph.
Failed Adjustment Go to Paragraph
ADC Calibration A15.9000
10 MHz Standard A23.9000
Sweep Ramp A14.9000
YO Driver +10V Reference A13.9000
Modulation Generator A8.9000
Sampler Assembly ILT.2010
YO Loop Gain A5.9000
YO Driver Gain and Linearity ILT.2030
YO Delay ILT.2030
FM Gain ILT.2100
FM Gain, Opt. 002 installed ILT.2140
Modulator Oset and Gain ILT.2110
AM Delay ILT.2130
AM Delay, Opt. 002 installed ILT.2150
AM Accuracy ILT.2130
AM Accuracy, Opt. 002 installed ILT.2150
Power Flatness ILT.2240
ALC Power Level Accuracy ILT.2240
SYTM Tracking and Delay Compensation RF.2890
Low Power SRD Bias RF.2890
Square Wave Symmetry A9.9000
Step Attenuator Flatness ILT.2300
Agilent 8360 Instrument Level Troubleshooting 1a-21
