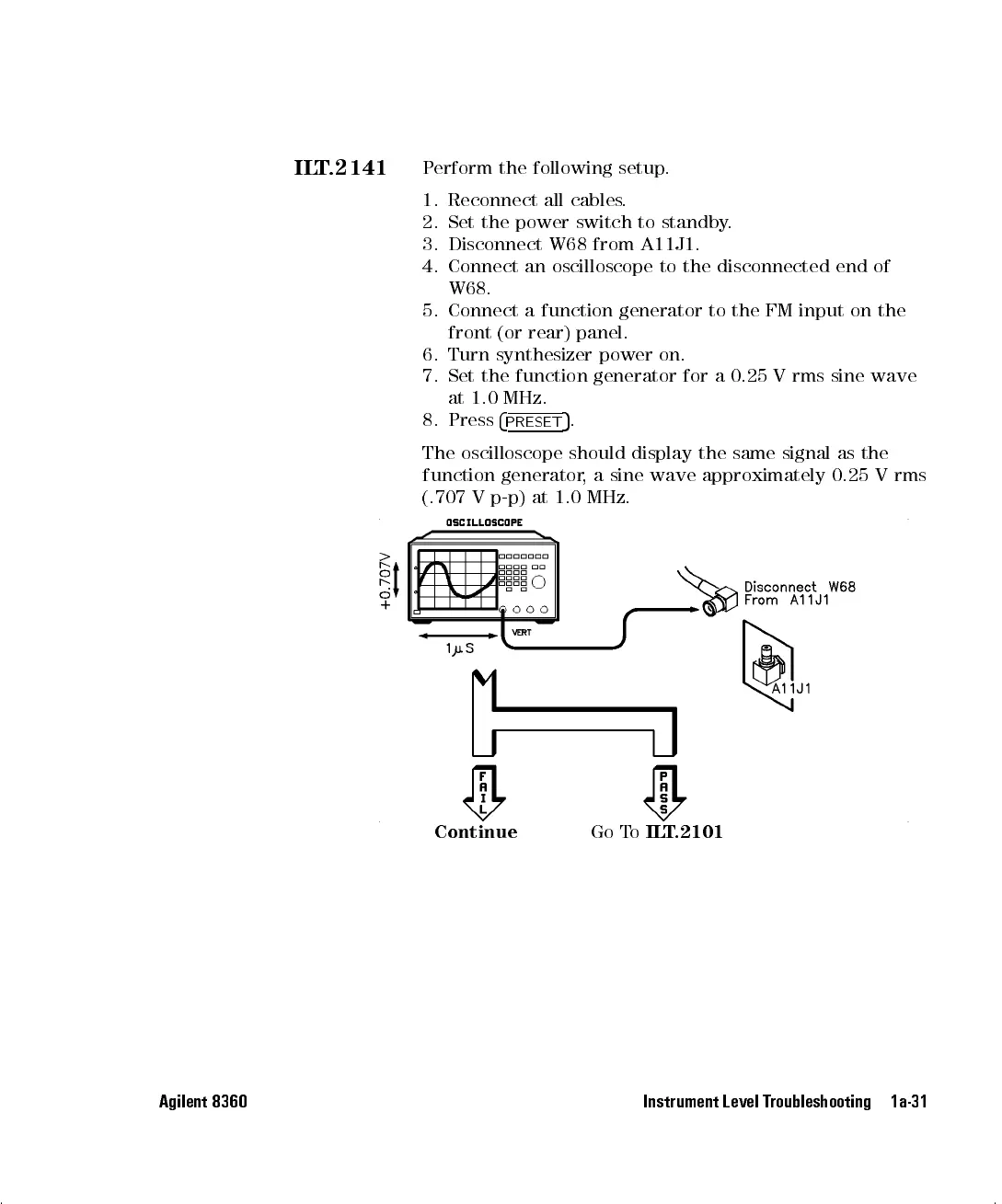

ILT.2141
Perform the following setup.
1. Reconnect all cables.
2. Set the power switch to standby.
3. Disconnect W68 from A11J1.
4. Connect an oscilloscope to the disconnected end of
W68.
5. Connect a function generator to the FM input on the
front (or rear) panel.
6. Turn synthesizer power on.
7. Set the function generator for a 0.25 V rms sine wave
at 1.0 MHz.
8. Press
4
PRESET
5
.
The oscilloscope should display the same signal as the
function generator, a sine wave approximately 0.25 V rms
(.707 V p-p) at 1.0 MHz.
Continue
Go To
ILT.2101
Agilent 8360 Instrument Level Troubleshooting 1a-31
