Agilent Technologies 8481A - Reassembly Procedures

Service
Chapter 3 51

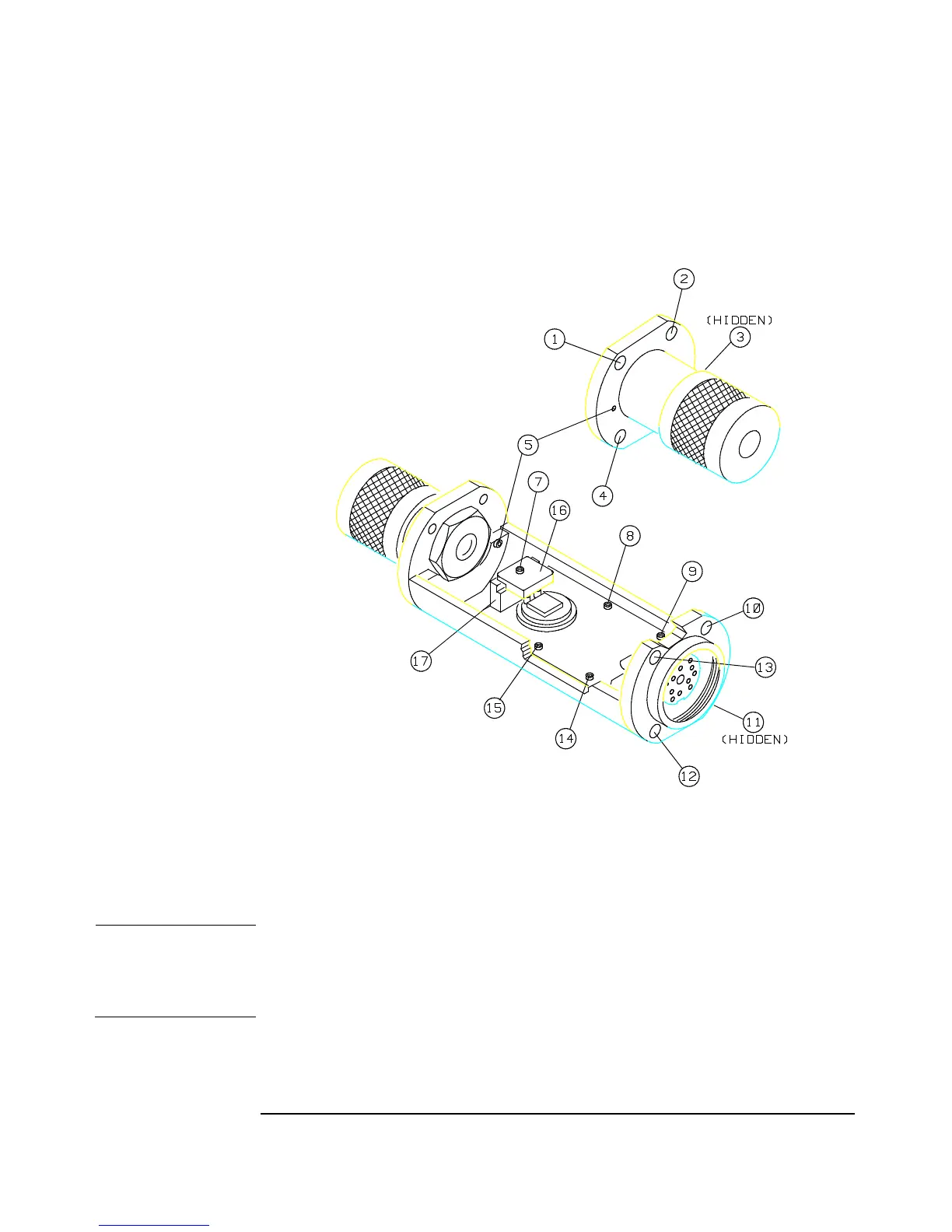

Figure 3-5 Power Sensor Hardware Locations
Reassembly Procedures
CAUTION The gold wires connecting the A1 Bulkhead Assembly and the A2 Power Sensor
Board Assembly are extremely delicate and may be easily broken. Be careful when
working around them.
Step 1. Set the printed circuit board and connector into place as shown in Figure 3-5,
bottom view.
