Agilent Technologies 8640b - Page 8

Adapted from HP Service Sheet “D” WB0SMX
8640b Gear Set Replacement

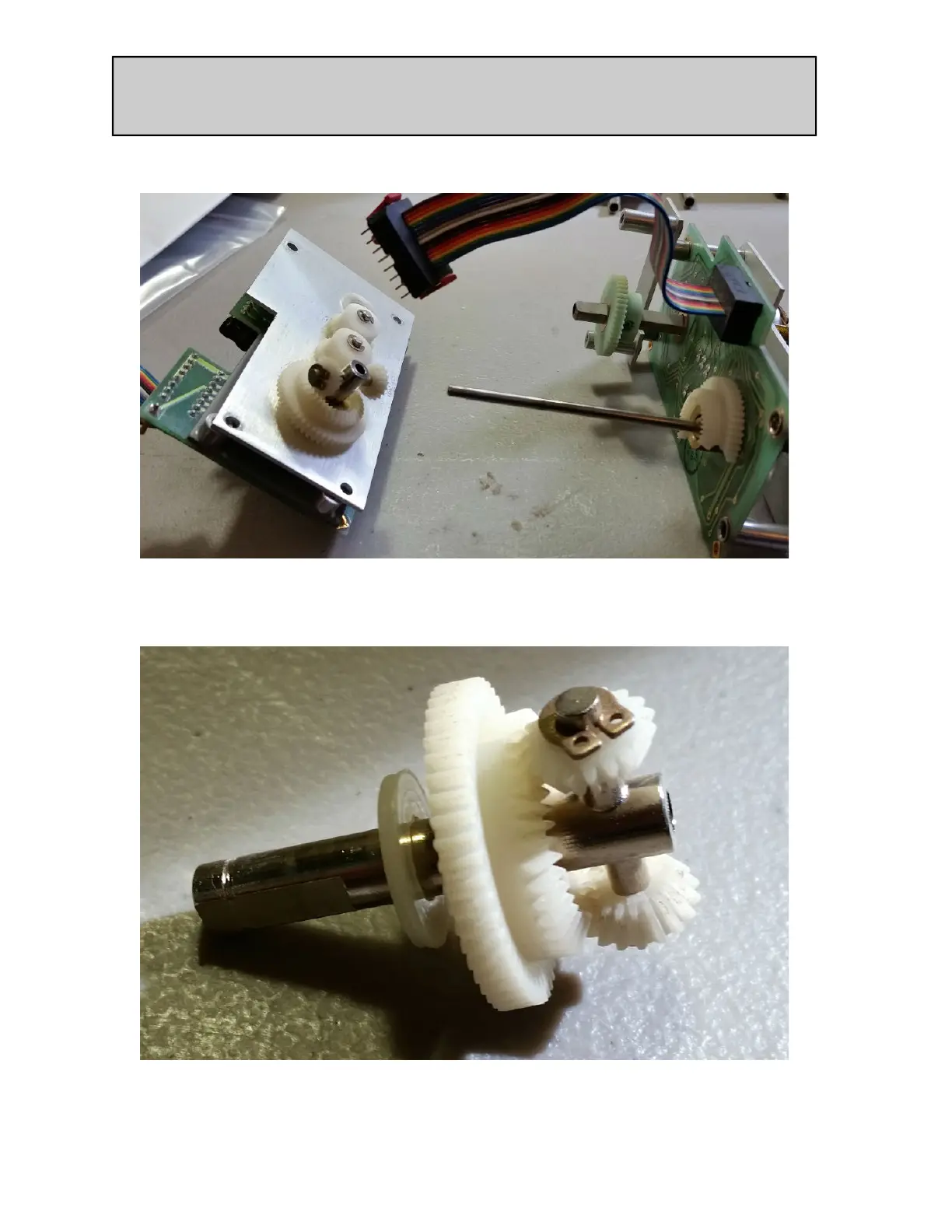

10. Slide A9A2 Assembly (36) and gear mounting plate (37) o? of detent
shafts.
11. Slide T-shaft (17) with its accompanying combination gear (19) and planet
gears (15 and 42) o? of solid shaft (part of 50).
