2-5
8753ET Specifications and Characteristics

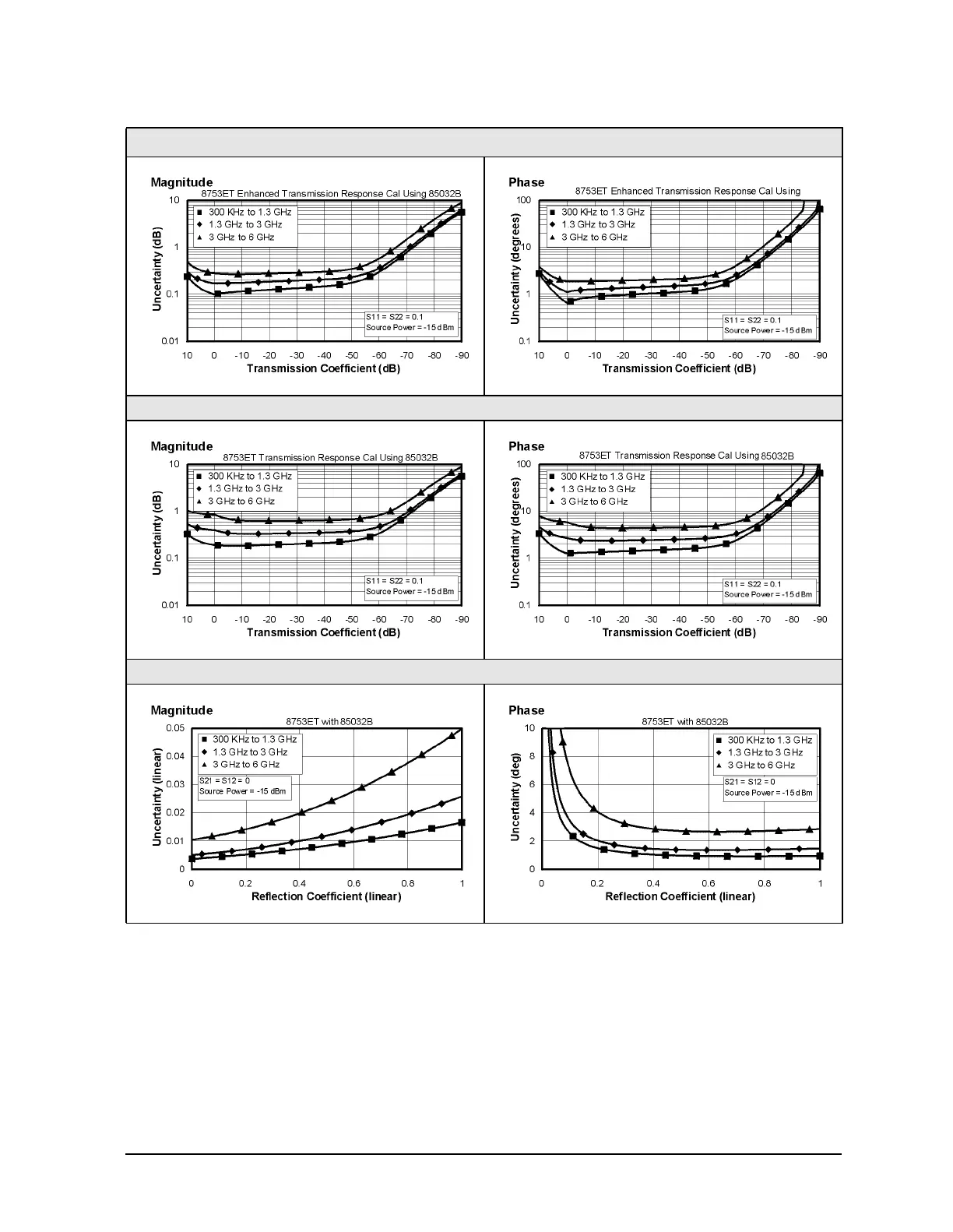

Corrected System Performance
Transmission
a
Uncertainty: Enhanced Response Calibration (Specification)
Transmission Uncertainty: Response Calibration (Specification)
Reflection Uncertainty: One-Port Calibration (Specification)
a. Option 004 may degrade transmission source match as much as 2 dB, resulting in up to
0.05 dB additional uncertainty in transmission uncertainty.
