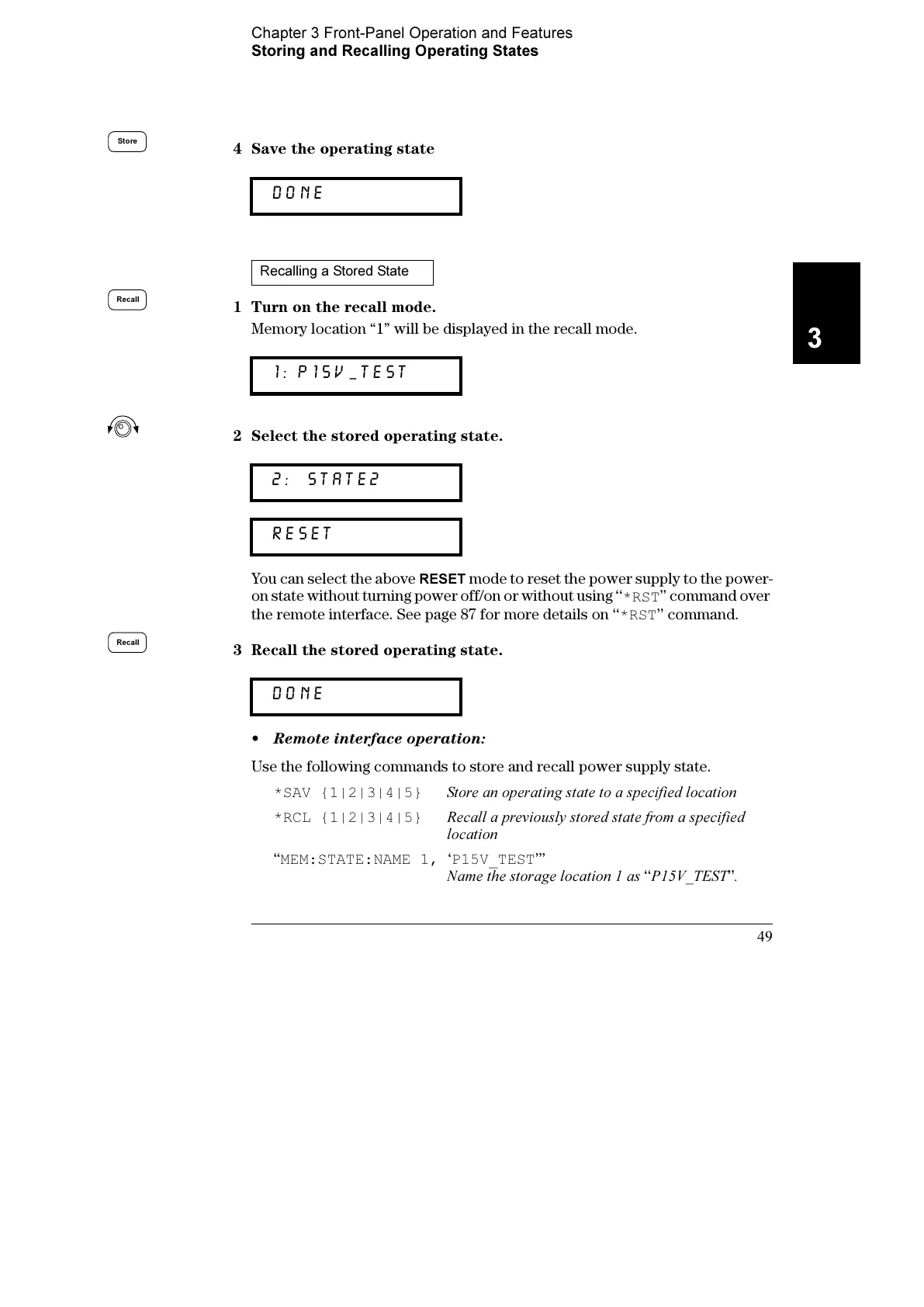

Chapter 3 Front-Panel Operation and Features
Storing and Recalling Operating States
49
3
4 Save the operating state
1 Turn on the recall mode.
Memory location “1” will be displayed in the recall mode.
2 Select the stored operating state.
You can select the above
RESET mode to reset the power supply to the power-
on state without turning power off/on or without using ‘‘
*RST
’’ command over
the remote interface. See page 87 for more details on ‘‘
*RST
’’ command.
3 Recall the stored operating state.
• Remote interface operation:
Use the following commands to store and recall power supply state.
*SAV {1|2|3|4|5} Store an operating state to a specified location
*RCL {1|2|3|4|5} Recall a previously stored state from a specified
location
‘‘
MEM:STATE:NAME 1,
‘
P15V_TEST
’’’
Name the storage location 1 as
‘‘
P15V_TEST
’’
.
DONE
Recalling a Stored State
1: p15v_test
2: state2
reset
done
Store
Recall
Recall
