Hardkey and Softkey Reference ESG Family Signal Generators
Sweep/List
4-96 User’s Guide
Sweep/List

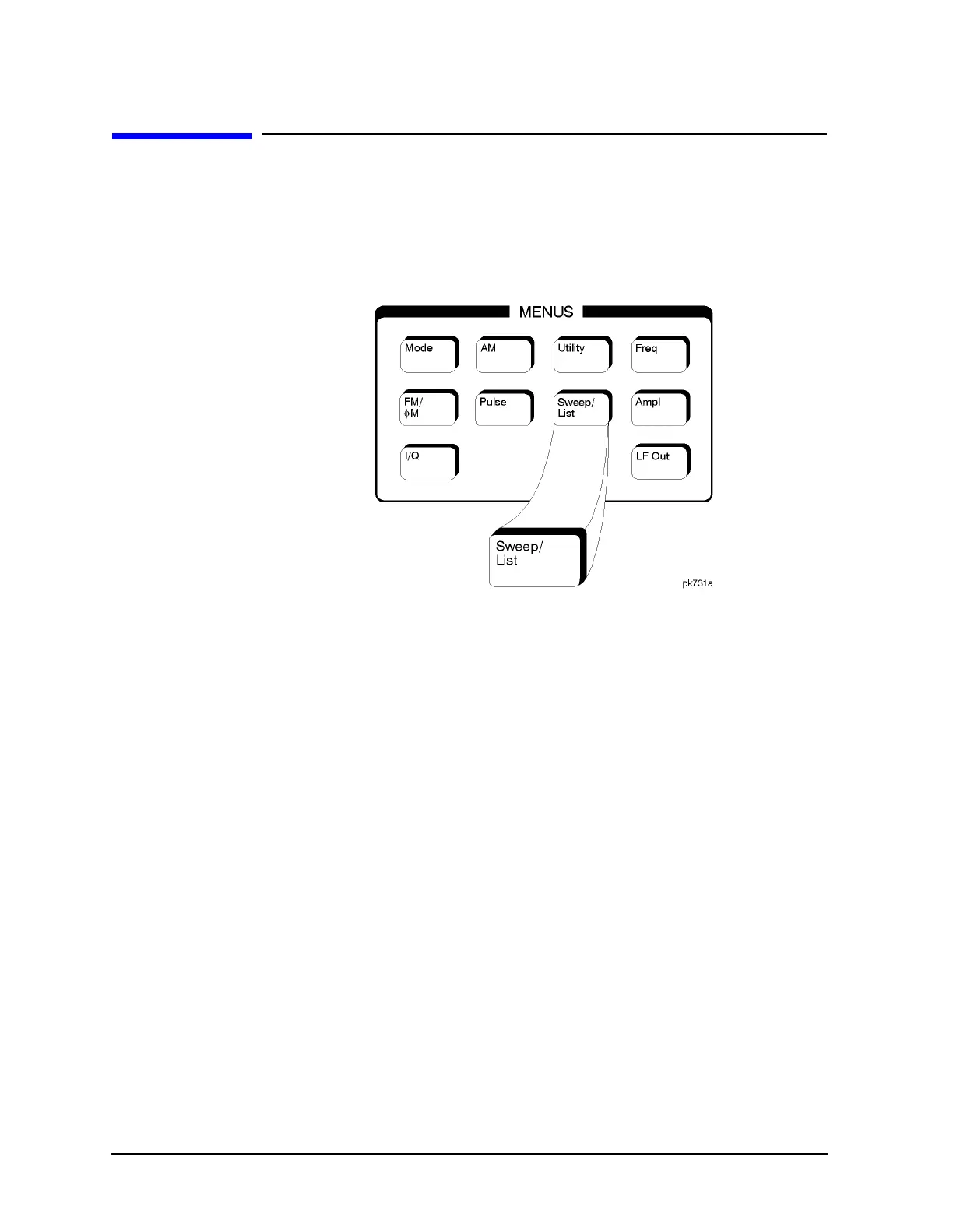

Pressing the front panel Sweep/List key reveals a menu of softkeys.
Using these softkeys you can define a series of points containing
frequency, amplitude, and dwell time information for the signal
generator to sweep. The softkeys are described in this section in
alphabetical order.
# Points
Press this softkey to define the number of points in a step sweep. To
enter the number of points in the sweep, press
# Points. The number of
step sweep points becomes the active function and the current value is
shown in the active entry area. To enter a new value, rotate the front
panel knob until the desired value is displayed, use the up and down
arrow keys, or enter the value using the numeric keypad and press the
Enter terminator softkey. A step sweep must always have a minimum of
2 points and can be configured to have as many as 401 points.
Default Value: 2
Softkey Location:
Sweep/List > Configure Step Sweep > # Points
Ampl
Press this softkey to set the signal generator to sweep amplitude data
only. The frequency is set at a constant value determined by the
Frequency front panel key. You can define a sweep containing both
amplitude and frequency information and still choose to sweep
amplitude only.
Softkey Location:
Sweep/List > Sweep > Ampl
