Getting Started
Introduction to Remote Operation
Chapter 12
Introduction to Remote Operation
ESG signal generators support the following interfaces:
• General Purpose Interface Bus (GPIB)
• Local Area Network (LAN)
• ANSI/EIA232 (RS-232) serial connection
Each of these interfaces, in combination with an I/O library and programming language, can
be used to remotely control your signal generator. Figure 1-1 uses the GPIB as an example of
the relationships between the interface, I/O libraries, programming language, and signal
generator.

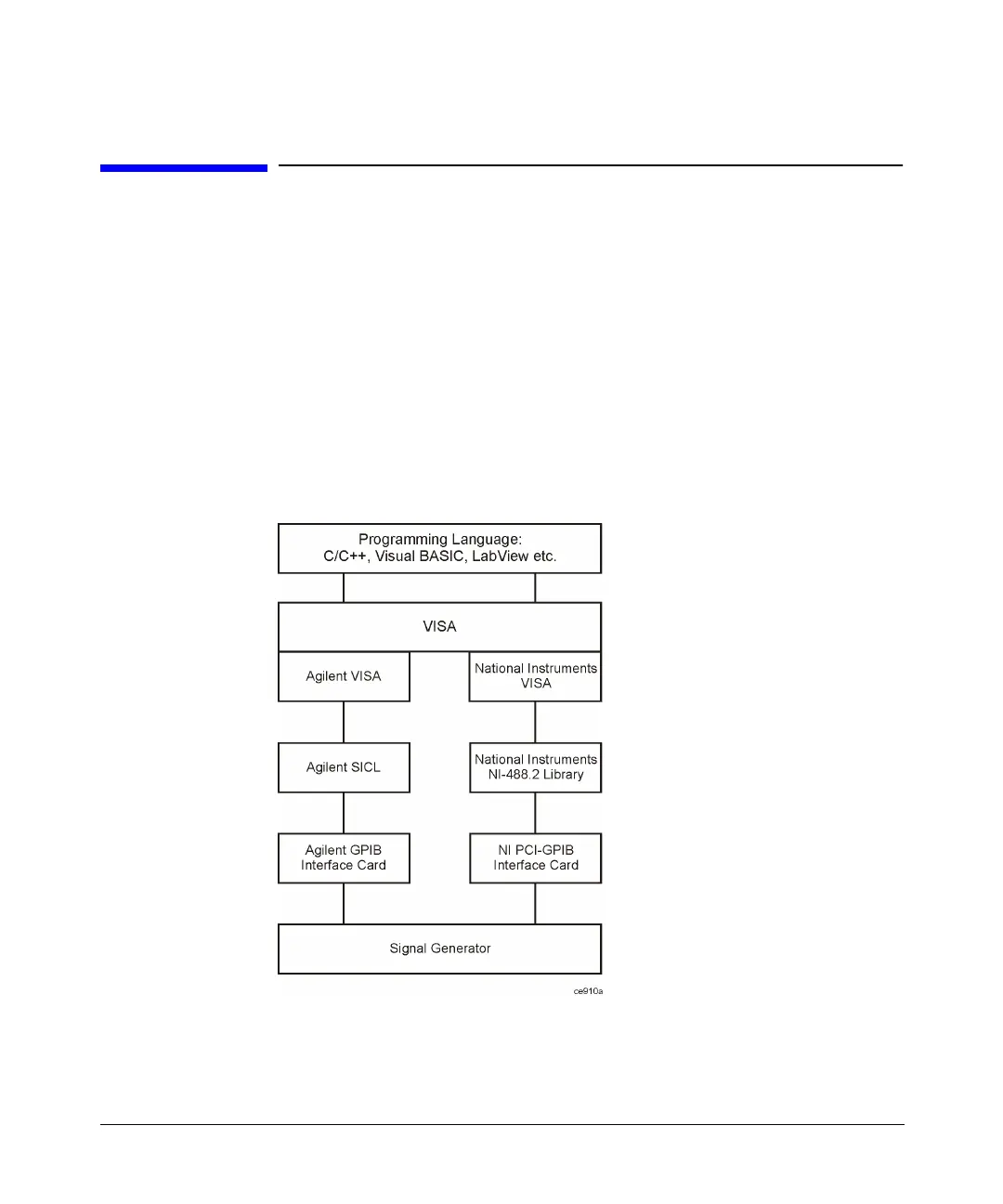

Figure 1-1 Software/Hardware Layers
