Programming the Status Register System
Status Groups
Chapter 3 119

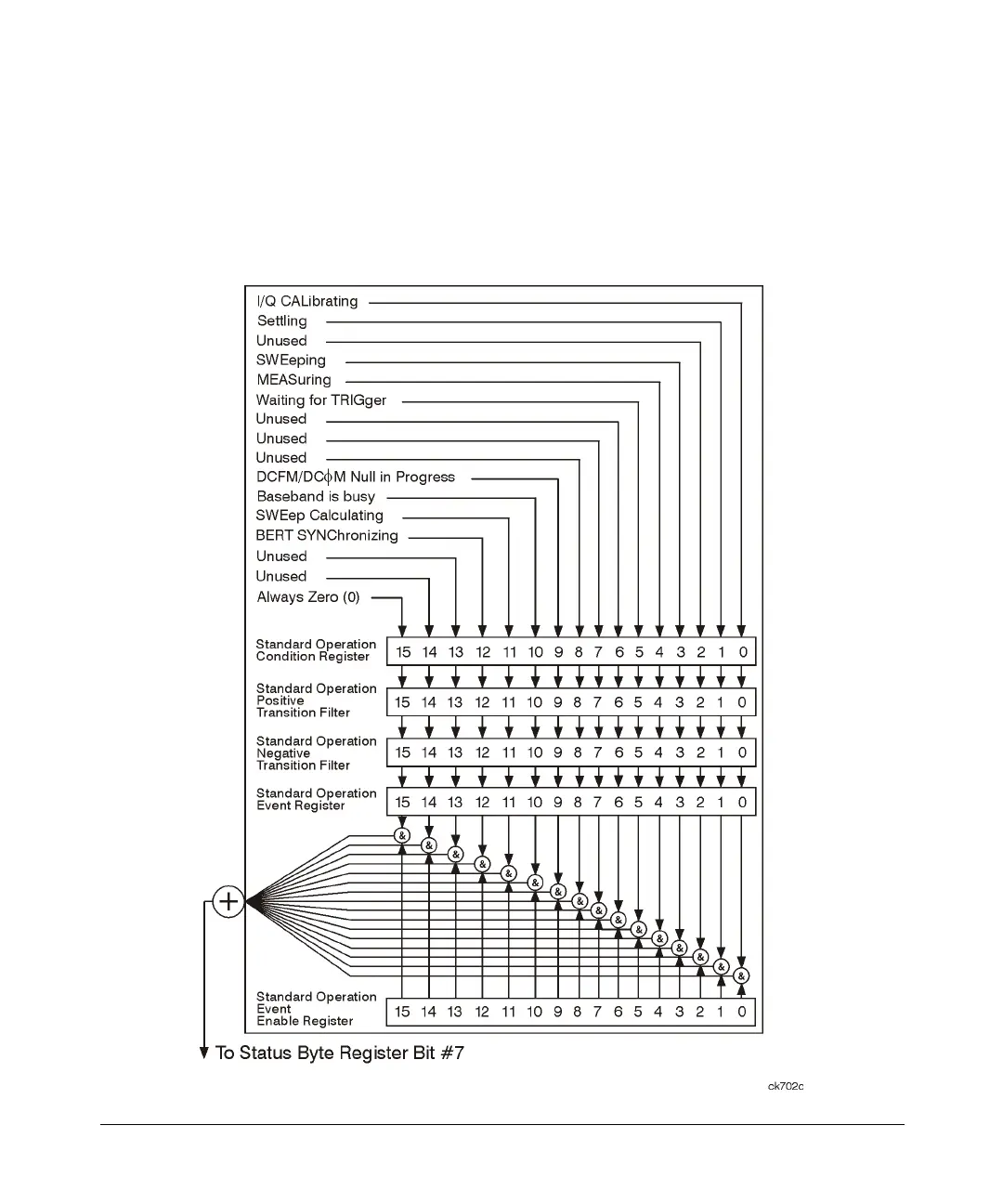

Standard Operation Status Group
The Operation Status Group is used to determine the specific event that set bit 7 in the Status
Byte Register. This group consists of the Standard Operation Condition Register, the
Standard Operation Transition Filters (negative and positive), the Standard Operation Event
Register, and the Standard Operation Event Enable Register.
