6 Installation Note E4440-90611
Installation Procedure
Installation Procedure
Remove the Outer Case
CAUTION If the instrument is placed on its face during any of the following
procedures, be sure to use a soft surface or soft cloth to avoid damage to
the front panel, keys, or input connector.
1. Disconnect the instrument from ac power.
2. Refer to Figure 1. Remove the two handles on the sides of the instrument as shown.
Use the T-20 driver to loosen the screws that attach each handle (1). Remove the
handles.
3. Remove the four bottom feet (2). Lift up on the tabs on the feet, and slide the feet in
the direction indicated by the arrows.
4. Remove the four screws (3) that hold the rear feet (4) in place.
5. Pull the instrument cover (5) off toward the rear of the instrument.

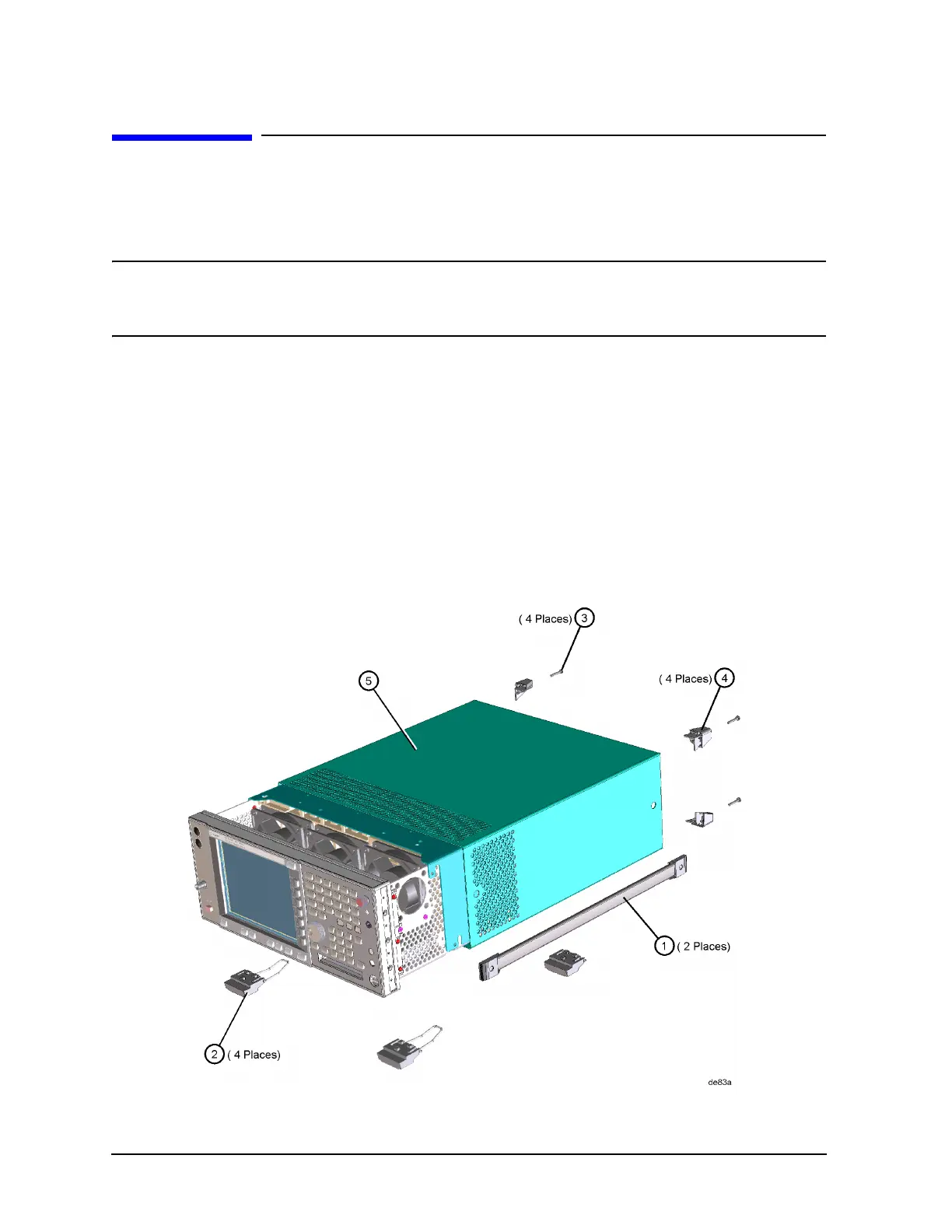

Figure 1 Instrument Outer Case Removal
