Chapter 3 81
Making Measurements
Tuned RF Level Measurement
Making Measurements
Tuned RF Level Measurement Example

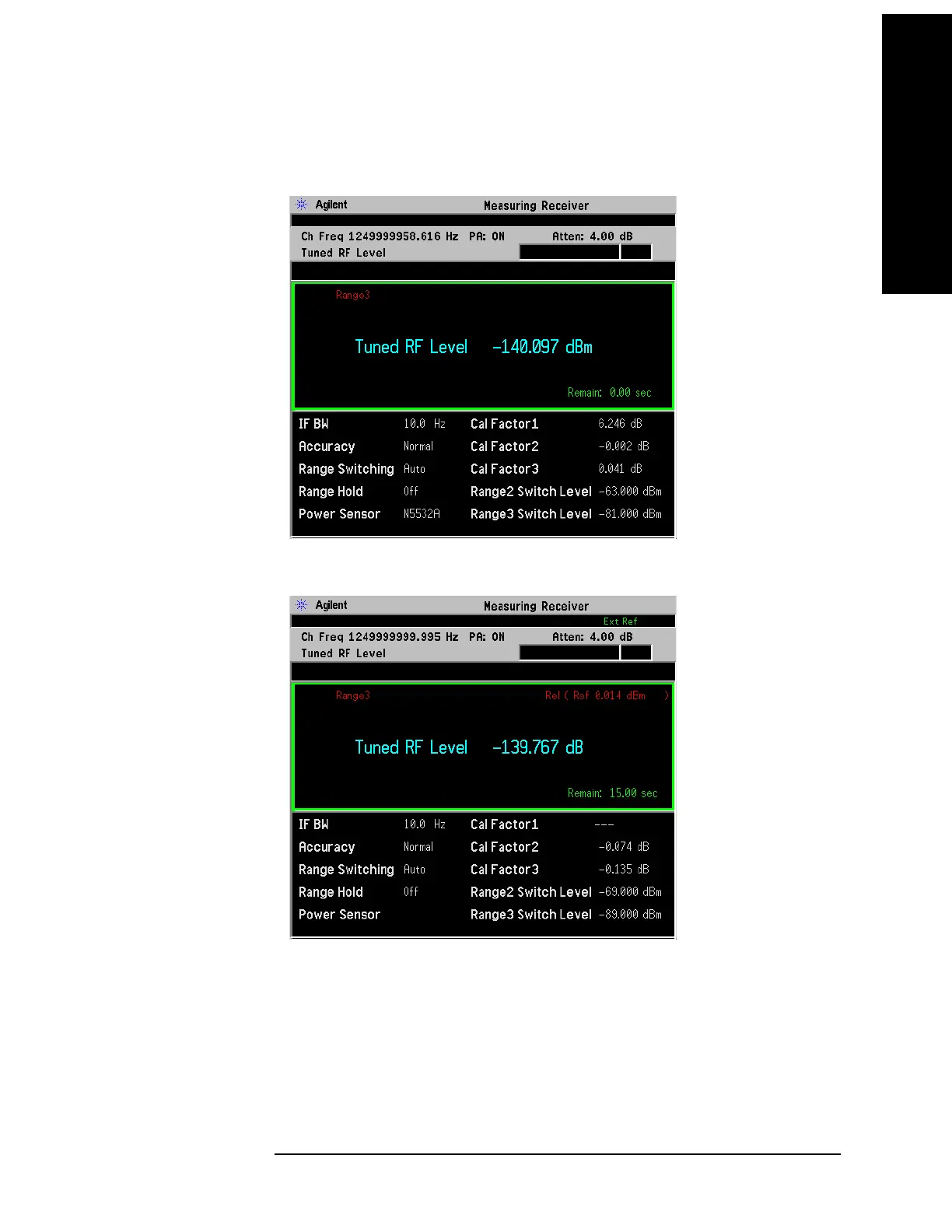

Figure 3-6 Tuned RF Level Measurement Result (Default)
Figure 3-7 Relative Tuned RF Level Measurement Result
Signal Under Test:
RF Frequency: 1.25 GHz; Amplitude: -140.0 dBm; Modulation: Off.
In this example, the measured absolute Tuned RF Level is -140.097 dBm and the
measured relative Tuned RF Level is -139.767 dB.
