Service Guide E8364-90038 7-53
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
E8362C, E8363C, E8364CRemoving and Replacing the A27, A28, A29, and A30 First Converters (Mixers) and Mixer Bias Board

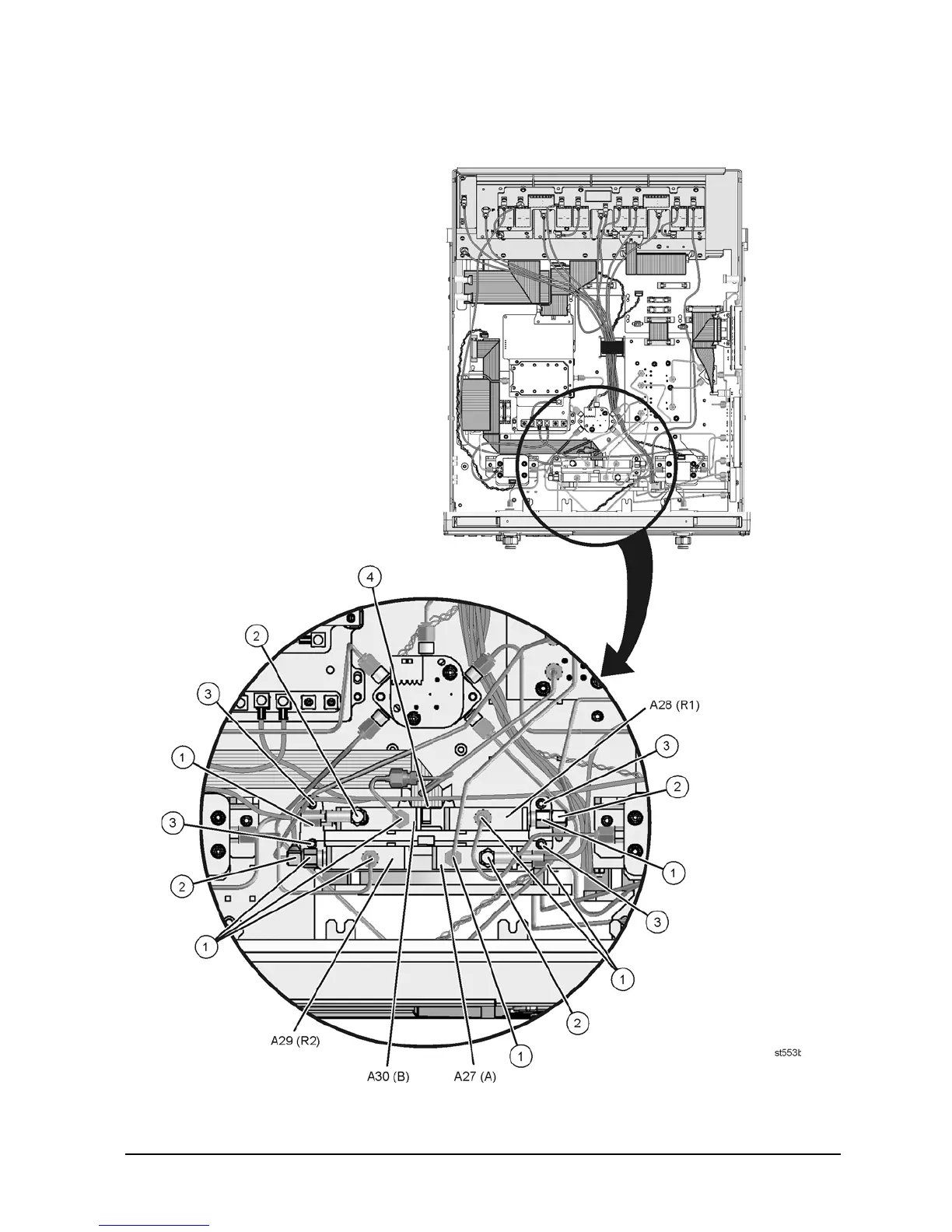

Figure 7-23 A27, A28, A29, and A30 First Converters (Mixers) Removal
