3-28 Service Guide E8364-90038
Tests and Adjustments PNA Series Microwave Network Analyzers
System Verification E8362C, E8363C, E836C
Figure 3-16 shows an example of typical verification results with Measurement Plots selected in the Printer
Output area of the System Verification windows. The printed graphical results show the following:
• the name of the device measured
• the serial number of the device
• the parameters measured
• Results of the measurements. Labeled as A in Figure 3-16.
• Data measured at the factory from the verification kit. Labeled as B in Figure 3-16.
• Upper and lower limit points as defined by the total system uncertainty system. Labeled as C in Figure
3-16.

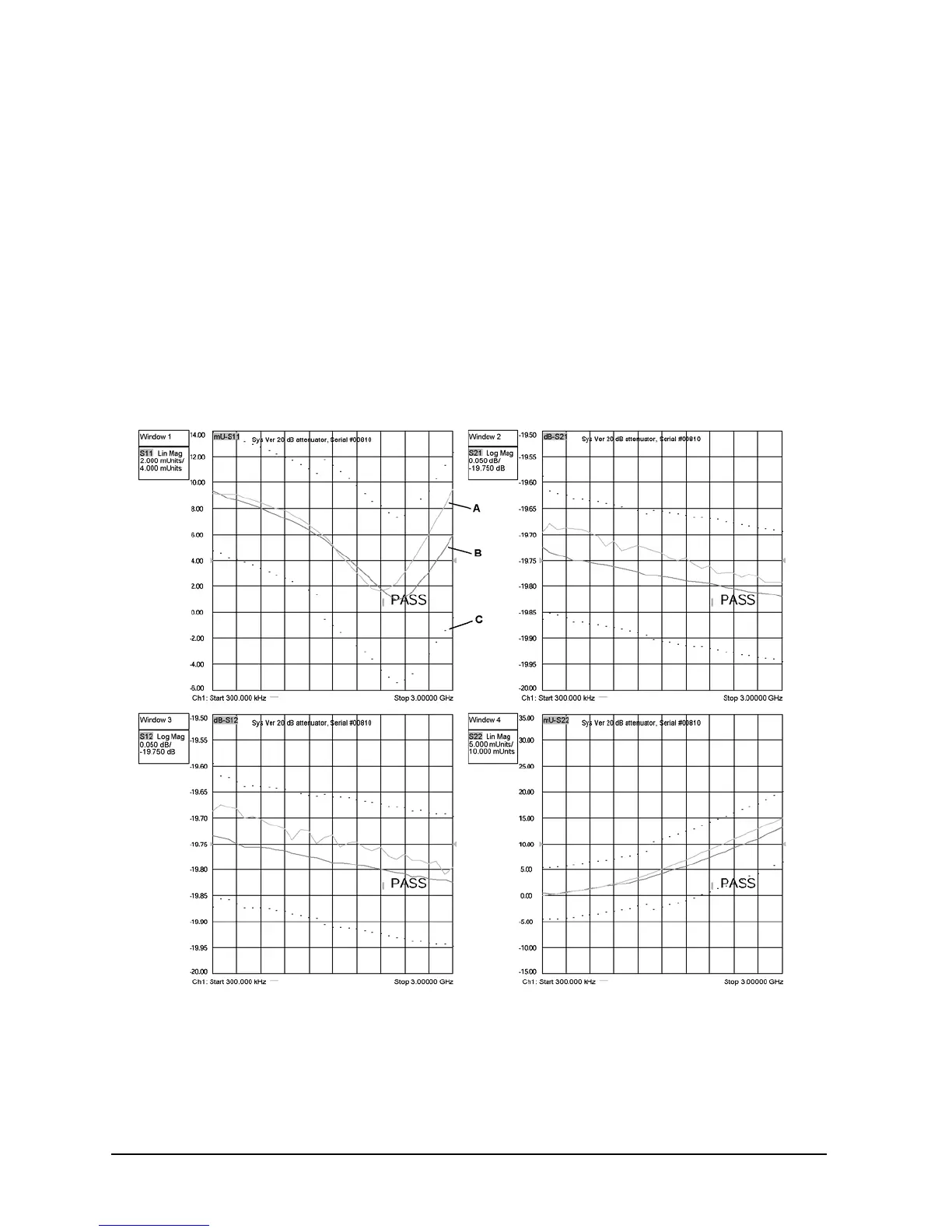

Figure 3-16 Example of Printed Graphical Verification Results
To Next Page
