Step 11. Lower the Receiver Deck
1. Pull the latch pin (item ②) towards the opposite side of the analyzer to release the receiver
deck.
2. Lift the receiver deck to partially lower it, then release the latch pin (item
②). Lower the
receiver deck to its fully lowered position and ensure that the latch pin latches in the
lowered position.
3. Using a T-10 TORX driver, reinstall the four screws, (item
①), to secure the receiver deck.

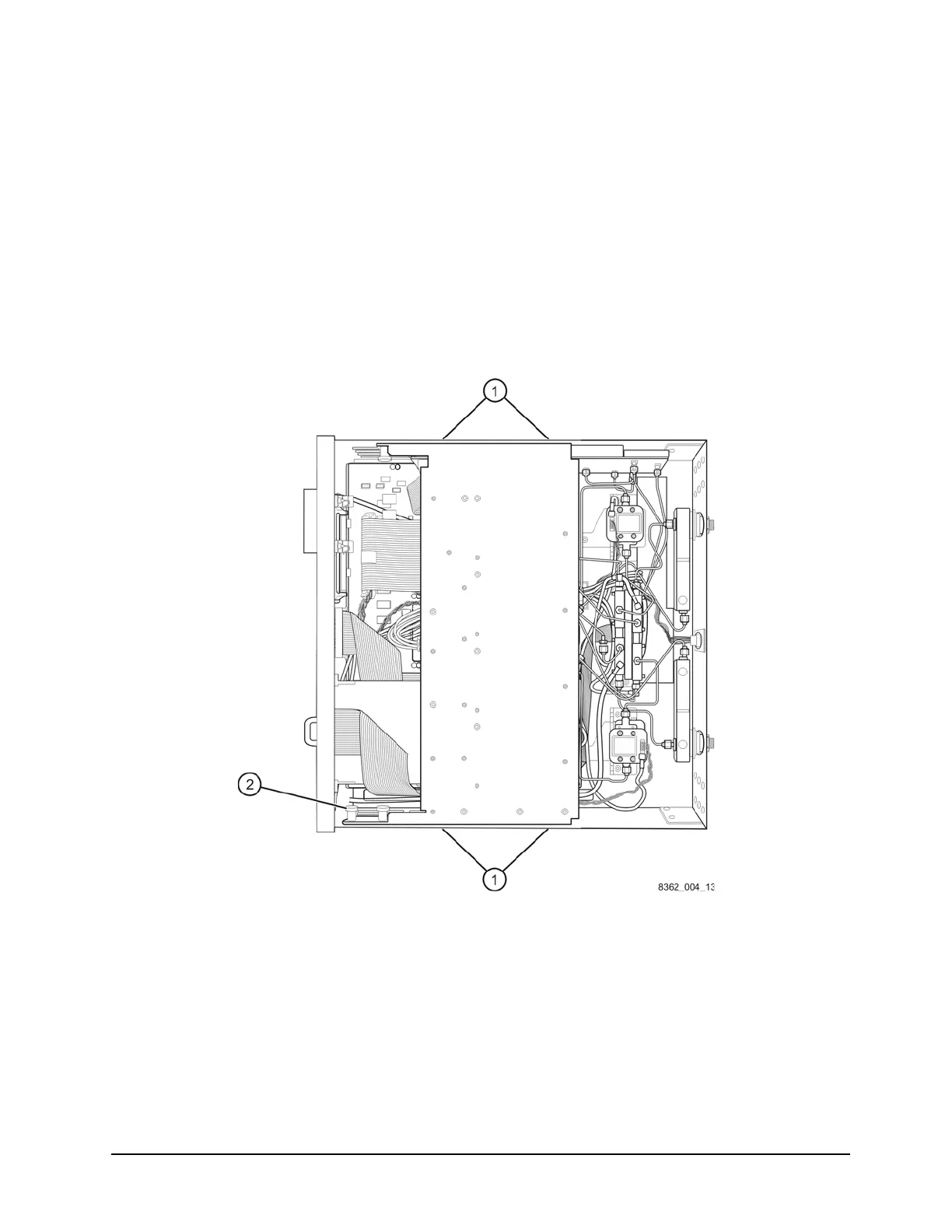

Figure 15 Receiver Deck Lowering
To Next Page
