26 Installation Note E8362-90004
Step 14. Reinstall the Front Panel Assembly
CAUTION
Before installing the front panel assembly onto the analyzer, lift and support the
front of the analyzer chassis.
1. Reconnect the ribbon cable (item
①
) to the A3 front panel interface board.
2. Slide the front panel over the test port connectors being careful to align the power switch
and floppy disk drive to their corresponding front panel cutouts. Ensure that the ribbon
cable (item
①
) is located below the fan to prevent it from being damaged by the fan blades.
3. Using a T-10 TORX driver, install the eight screws (item
②
) in the sides of the frame.

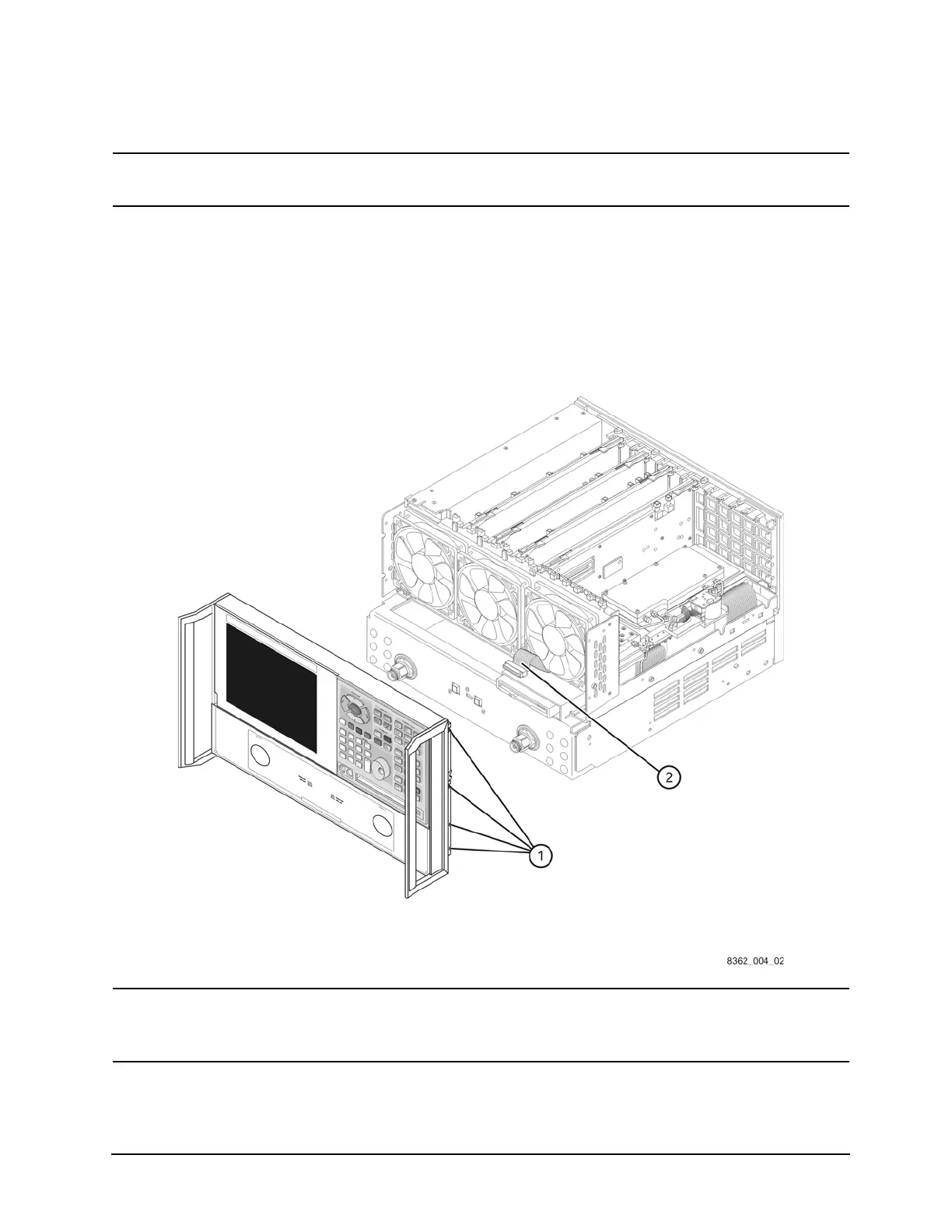

Figure 18 Front Panel Assembly Reinstallation
NOTE
The figure above shows the E8362B front panel and floppy disk drive. The
E8362C front panel has a slightly different appearance and does not
include a floppy disk drive.
