8 Installation Note E8364-90024
Step 2. Remove the Front Panel Assembly
Refer to Figure 3 for this procedure.
1. With a 5/16-inch wrench, remove the six front panel semirigid jumper cables (item
①
).
2. With a T-10 TORX driver, remove the eight screws (item
②
) from the sides of the frame.
CAUTION
Before removing the front panel from the analyzer, lift and support the front of
the analyzer chassis.
3. Slide the front panel over the test port connectors.
4. Disconnect the front panel interface ribbon cable (item
③) from the A3 front panel
interface board. The front panel is now free from the analyzer.

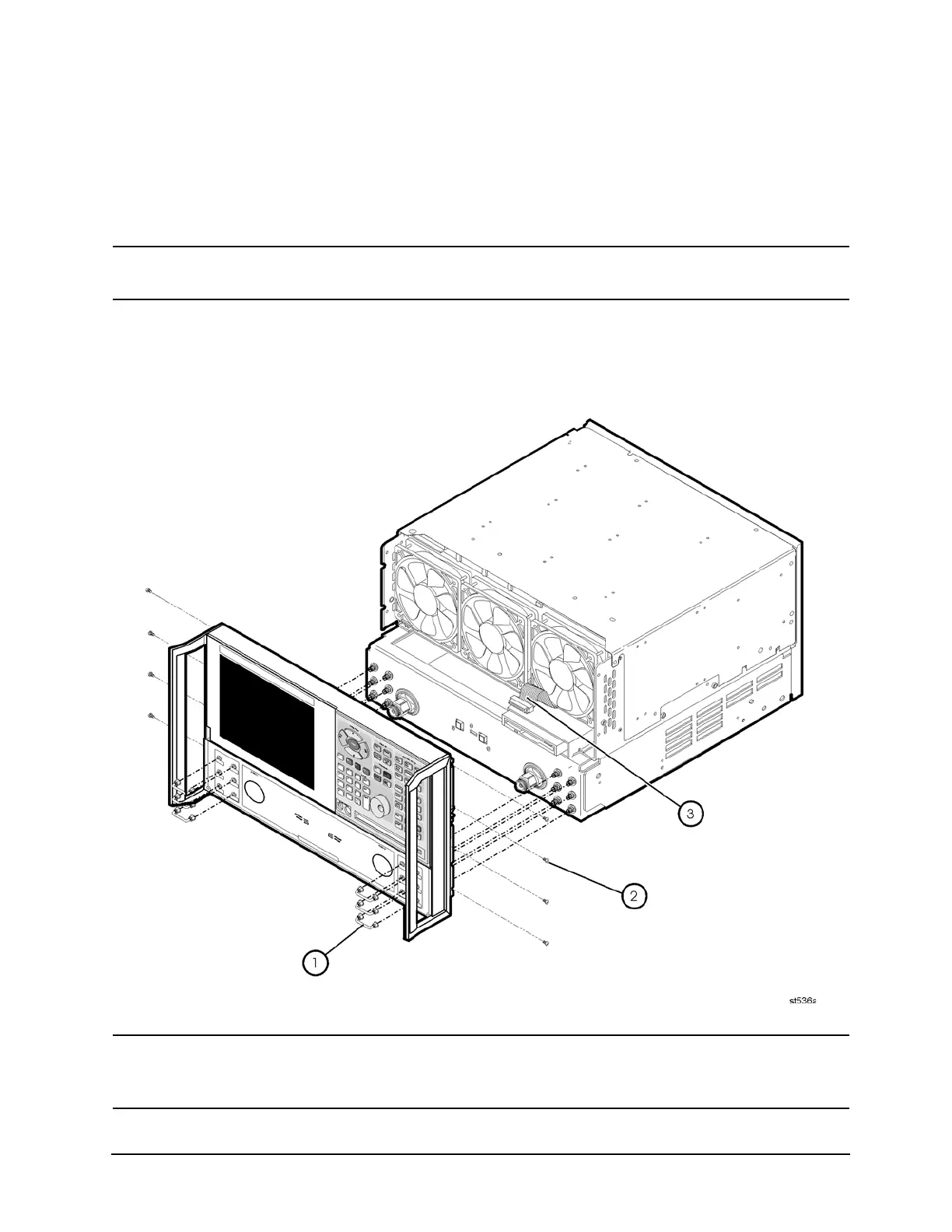

Figure 3 Front Panel Assembly Removal
NOTE
The figure above shows the E8363/4B front panel and floppy disk drive.
The E8363/4C front panel has a slightly different appearance and does not
include a floppy disk drive.
