3-8 Chapter 3
Making GSM Base Station Measurements
Making the Output RF Spectrum (ORFS) Measurement

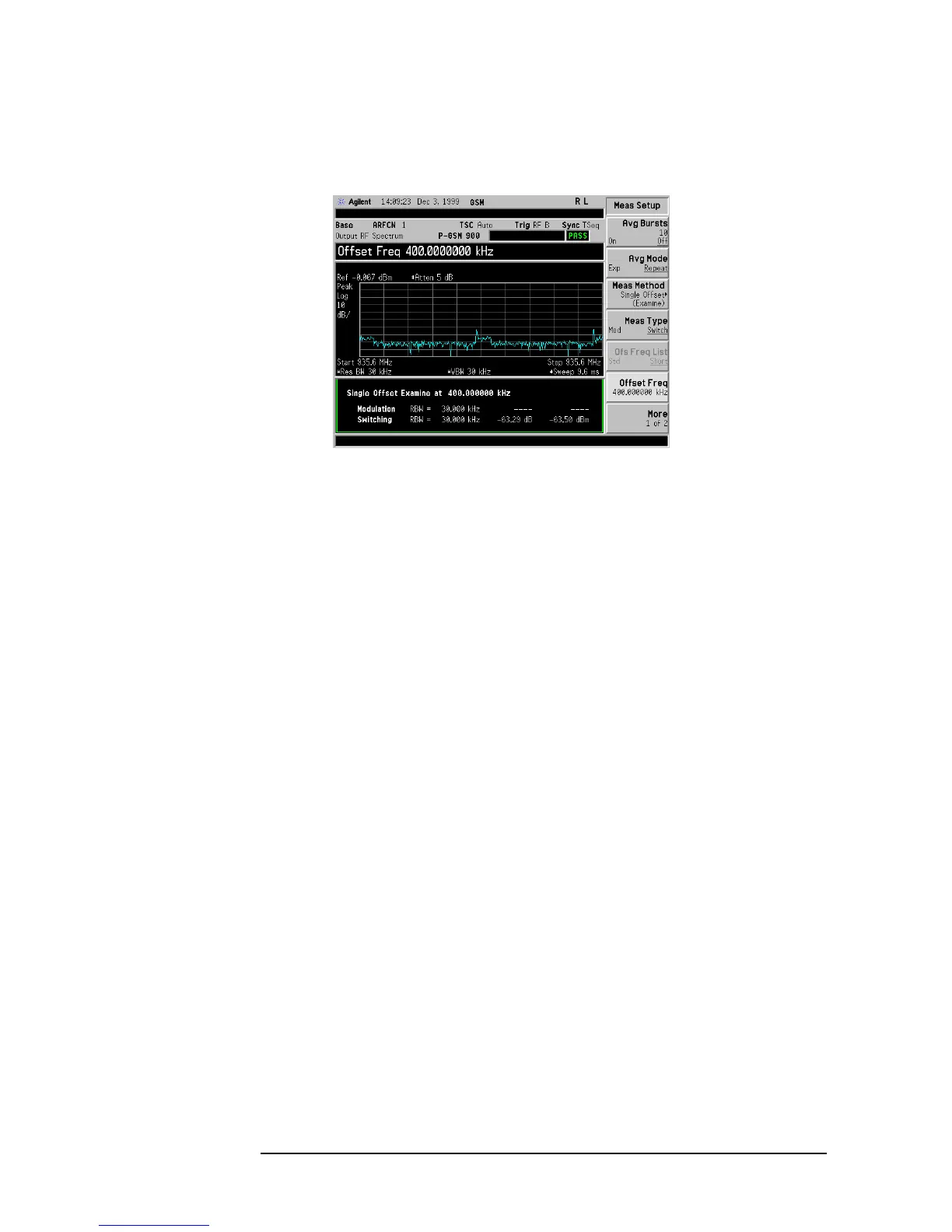

Figure 3-4 Output RF Spectrum (ORFS) Due To Switching Transients:
Single Offset Measurement
Figure 3-4 (above) shows a single offset trace taken during an ORFS
due to switching transients measurement. If averaging is turned on, the
trace is averaged with previous traces. The peak of the traces is used.
The displayed value is the maximum of all points for all traces (Max or
Peak) over the entire frame.
