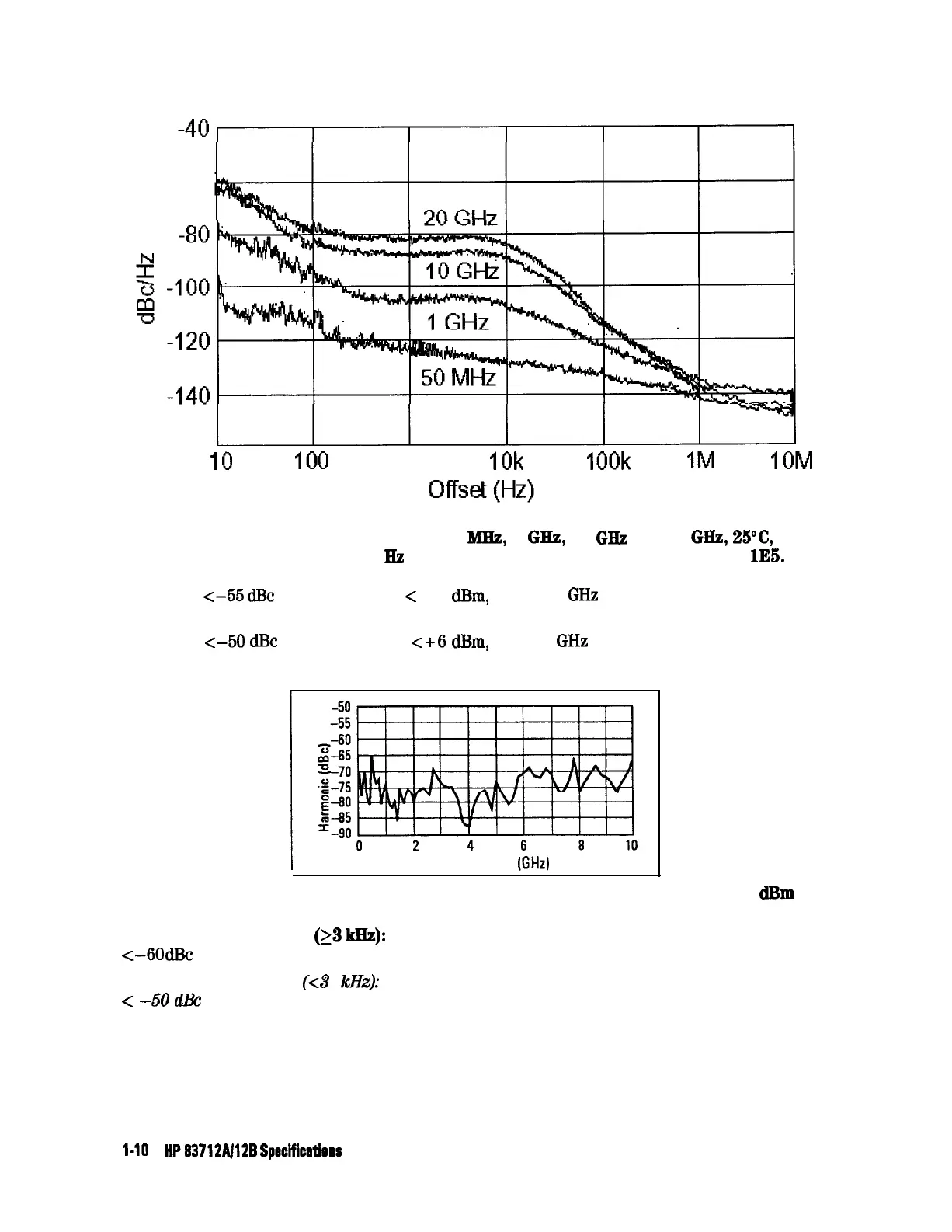

Figure 1-9.
Typical single-sideband phase noise at 50 MHZ, 1 GHz, 10 GHz and 20 GHz, 25%, CW
mode. Offsets less than 100 Hz require the high stability timebase, Option lE5.
Harmonics: c-55 dBc at output levels < + 6 dE3m, 0.01 to 1 GHz
Harmonics: c-50 dBc at output levels <+6 dBm, 1 to 20 GHz
Carrier Frequency @Hz)
Figure l-10. Typical 2nd Harmonic Levels Measured at Output Power of + 6 dBm
Non-Harmonic Spurious (13 kHz):
c-60 dBc (includes power supply and frequency synthesis spurious).
Non-Harmonic Spurious (~3 kHz):
< -5odBc
Sub-Harmonics: None
