Getting Started 1
N1913/1914A Installation Guide 25
4 Press
Network DHCP if you need to set any optional settings.
5 Press
Restart Network.
A pop- up appears for 5 seconds (see Figure 1- 3). Monitor the Status at
the bottom of the display to see when the server has assigned an
address.

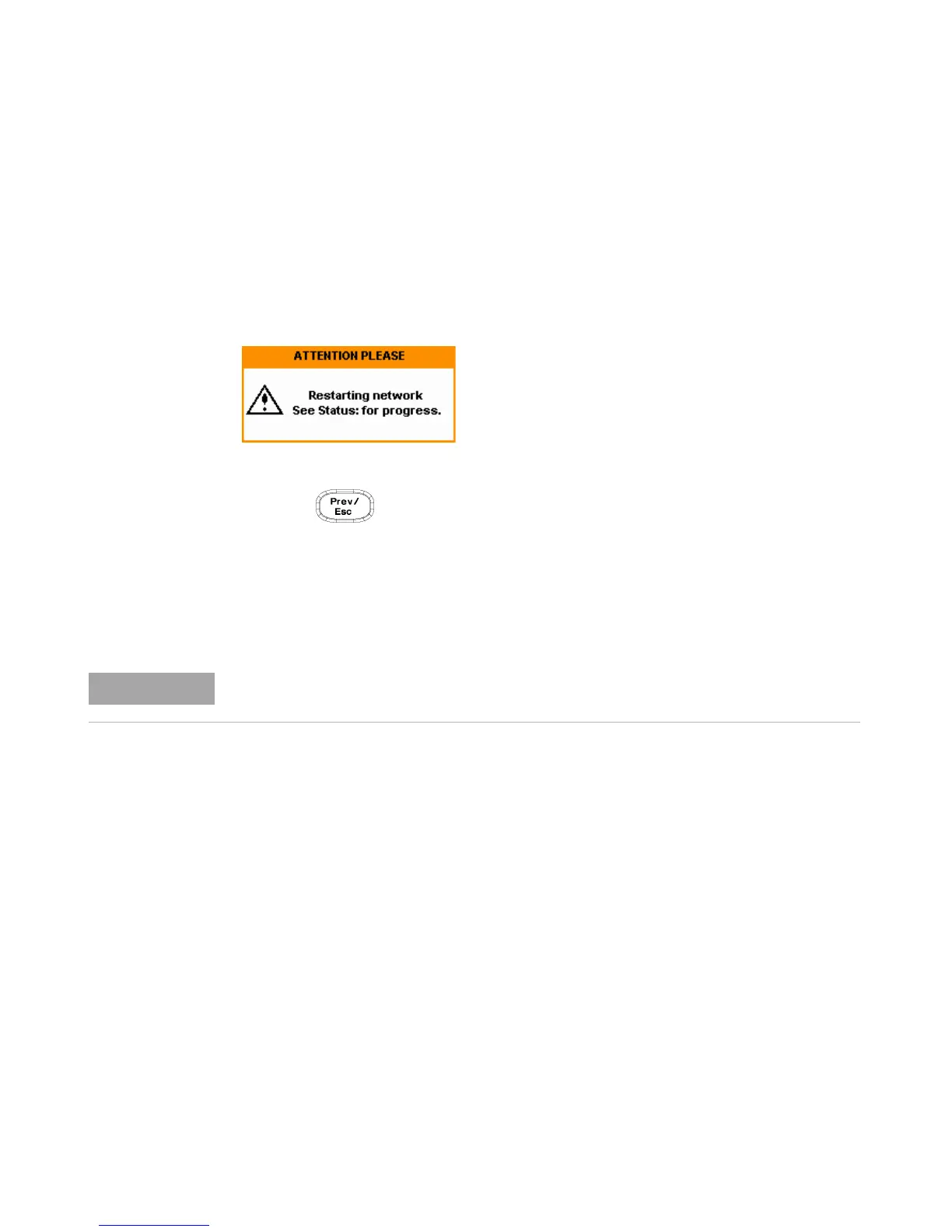

Figure 1-3 LAN Network Restart Pop-up
6 Press , to return to a measurement screen.
7 If you intend to program over LAN or use such programs, make sure
you have installed I/O software on your computer.
8 Use the Connection Expert utility of the IO Libraries Suite to add the
power meter and verify a connection. When identifying the instrument,
it is easiest to use the IP address that you noted in step 6 above.
9 You can use various programming environments to control the power
meter. For an overview about programming instruments via LAN, refer
to the connectivity guide.
If you have installed other I/O software, refer to documentation that accompanies the
software.
