TriSc roll 600 Dry Scroll Vacuum Pump

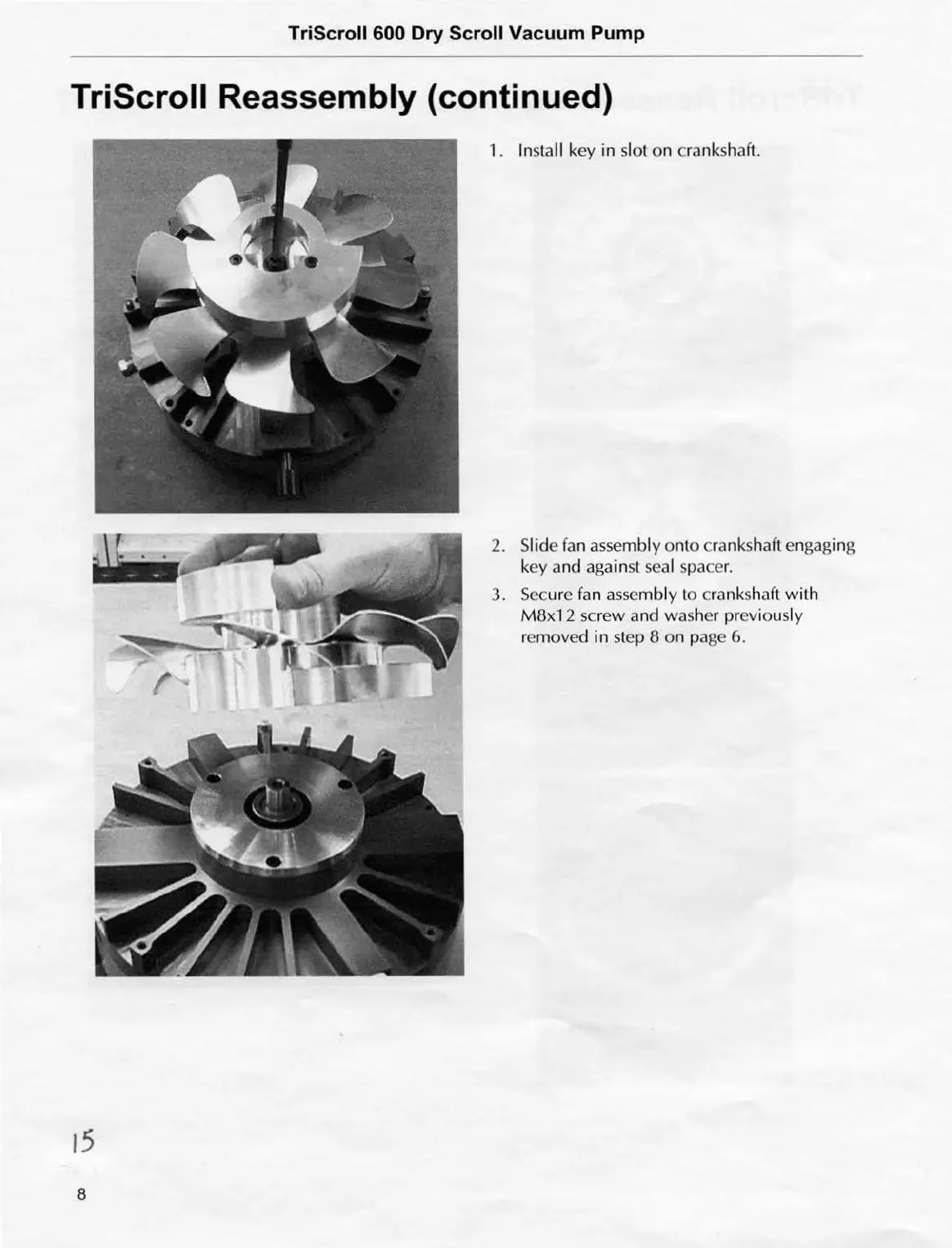

TriScroll Reassembly (continued)
15
8
1. Install ke y in slot on crankshaft.
2. Slide fan assembly on lO cra nk shaft engaging
key and against
seal sp ace r.
3. Sec ure fa n asse mbly to cranksha ft with
M8x'2 sc r ew and washer previously
re mo ved in step 8 on pa ge 6.
