Agilent Technologies TriScroll 600 Series - TriScroll Disassembly Steps; Intake Assembly Removal

TriScroll 600 Dry Scroll Va cuu m Pump

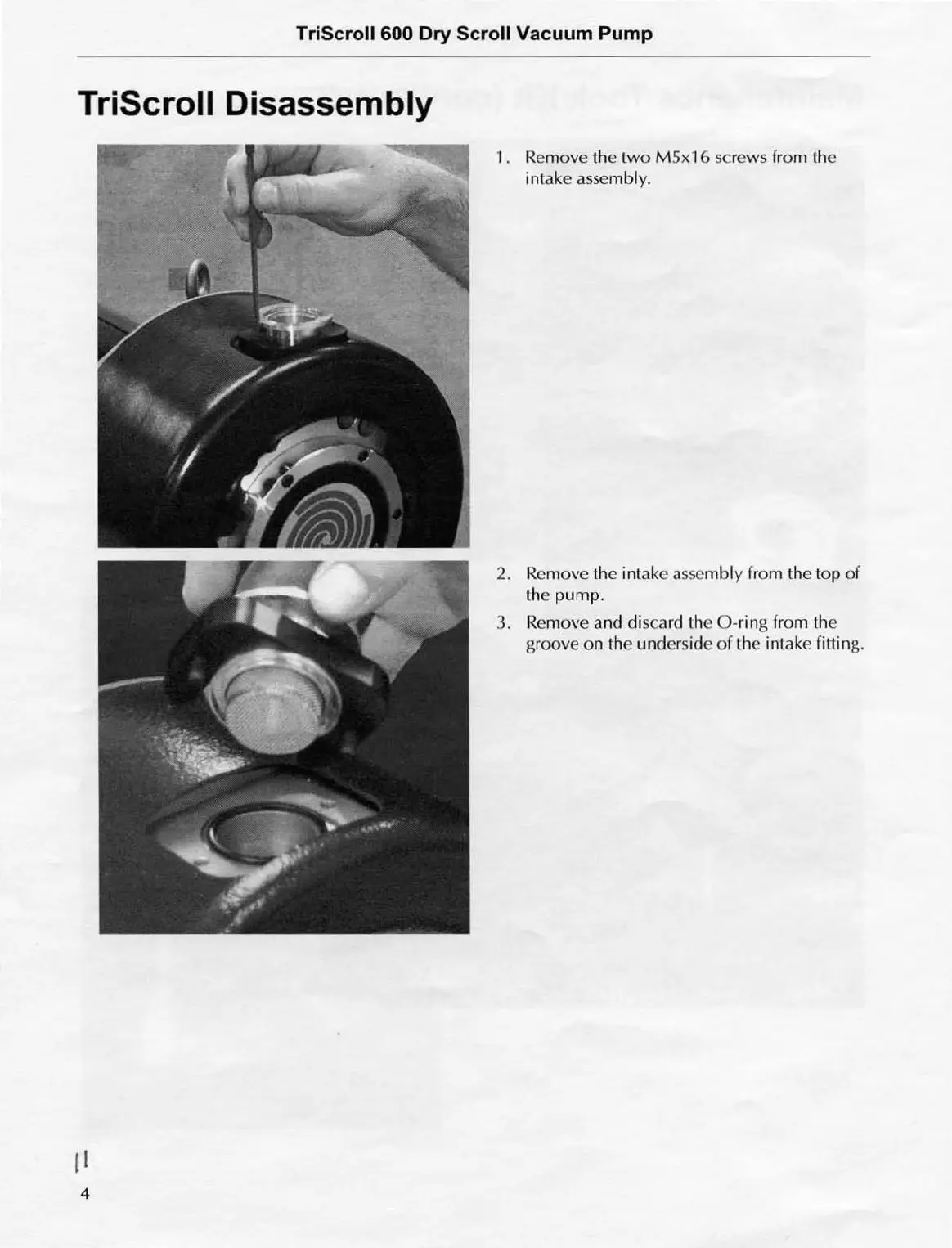

TriScroll Disassembly
II
4
1. Remove the t wo M5x 16 screws from the
in take assembly.
2. Remove th e intake assembly from the top of
th e pump.
3. Remove and di scard the O- ri ng from th e
groove on the underside of the intake fittin g.
