Agilent Technologies TriScroll 600 Series User Manual

•
TriScroll 600 Dry Scroll Vacuum Pump

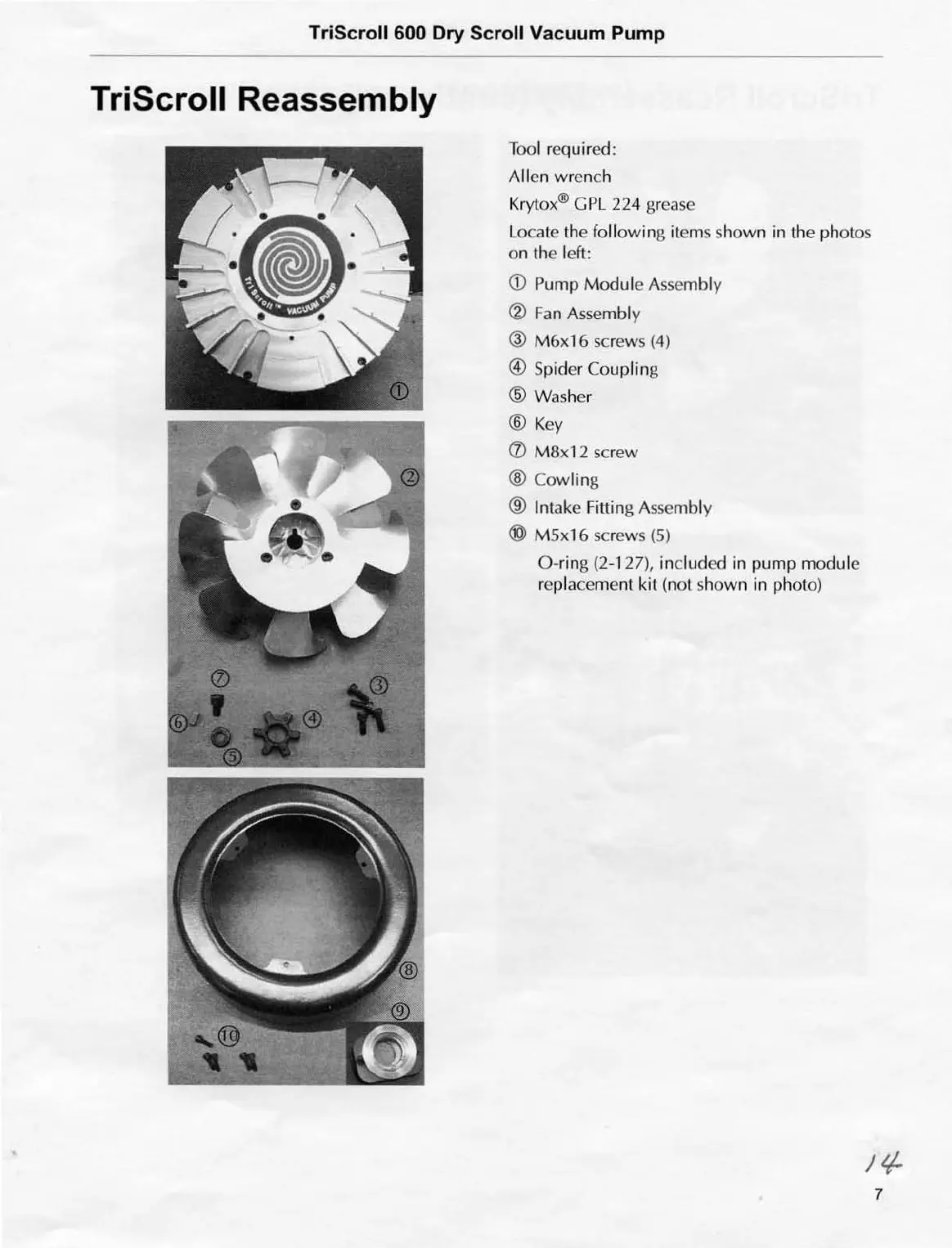

TriScroll Reassembly
Tool required:
All en wrench
Krytox® GPL 22 4 grease
Locate the followin g items show n in the phot os
on th e lefl:
<D Pump Module Assembly
® Fa n Assembly
@ M6x l6 screws (4)
@ Spider Coupling
@ Washer
® K ey
(lJ M8x12 scr ew
® Cowling
® Intake Fitting Assembly
~ M5x 16 sc r ew s (5)
O-r ing (2-127), included in pump module
rep
la cement kit (not sh ow n in phot o)
It./-
7
