Agilent Technologies TriScroll 600 Series - Fan Assembly and Crankshaft Disassembly

TriScroll 600 Dry Scroll Vacuum Pump
TriScroll Disassembly (continued)
/3
6

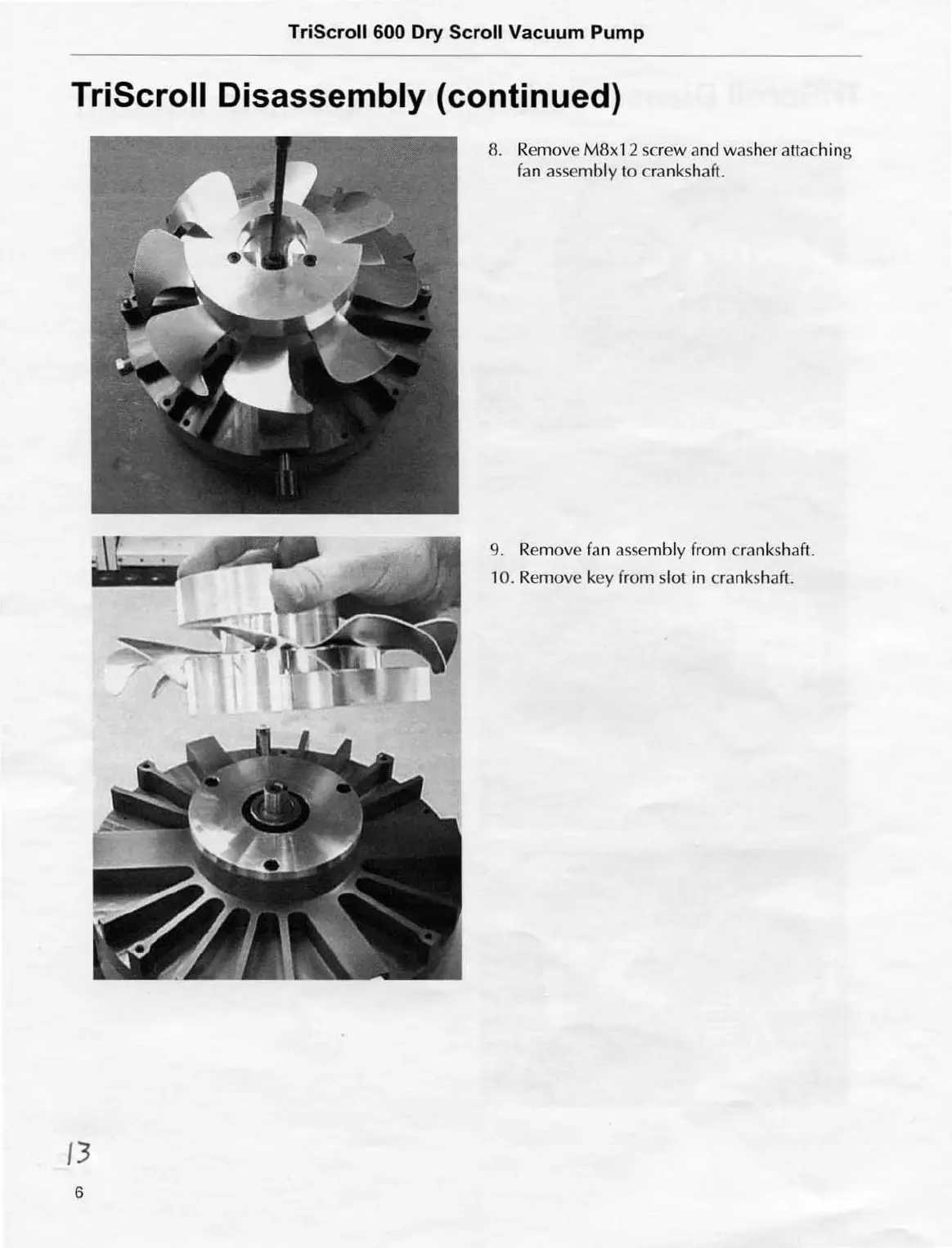

8. Rem ove M8 x12 sc r ew and washer attaching
fan assembly to crankshaft.
9. Remove fan assembly from crankshaft.
10. Remove key from sl ot in crankshaft.
