U1731B/U1732B Quick Start Guide
Inductance/Capacitance/Resistance
Measurement
Procedure:
1 Press the L/C/R key to select inductance (L), capacitance (C), or
resistance (R) measurement.
2 Connect the red test clip or SMD tweezers to the + terminal and the
black test clip to the – terminal.
3 Connect both the test clips to the component leads as required or use
the SMD tweezers to measure SMD components.
4 Press the FREQ key to select the testing frequency.
5 Press the D/Q/
q
key to select Q or D factor for secondary display as
required.
6 Ensure that your hands are not touching the clips before taking the
readings on the display.

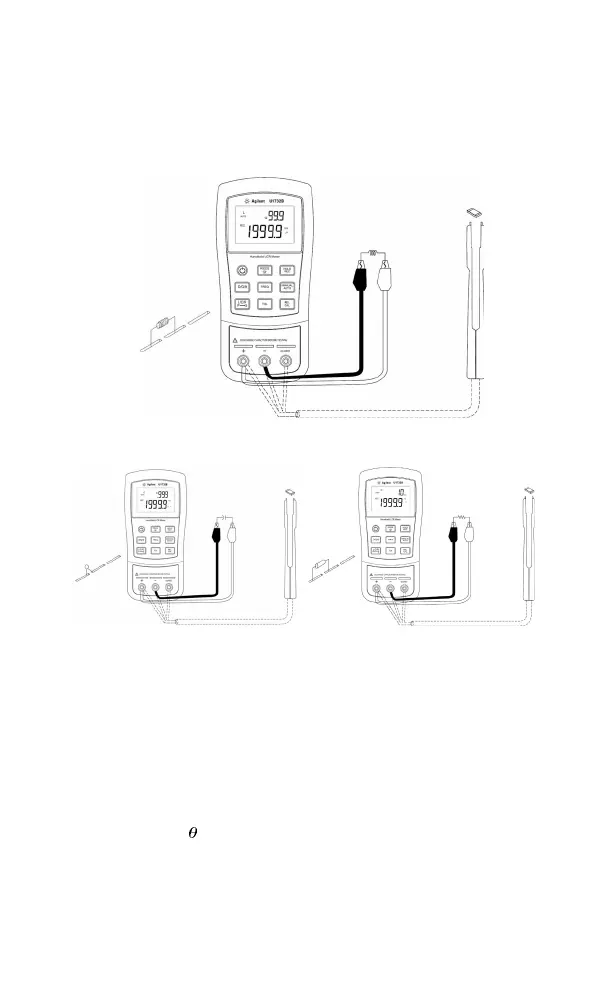

7 The LCR measurements setup are shown as above.
Inductance measurement
Capacitance measurement
Resistance measurement
