Agilent Technologies U1731B

U1731B/U1732B Quick Start Guide

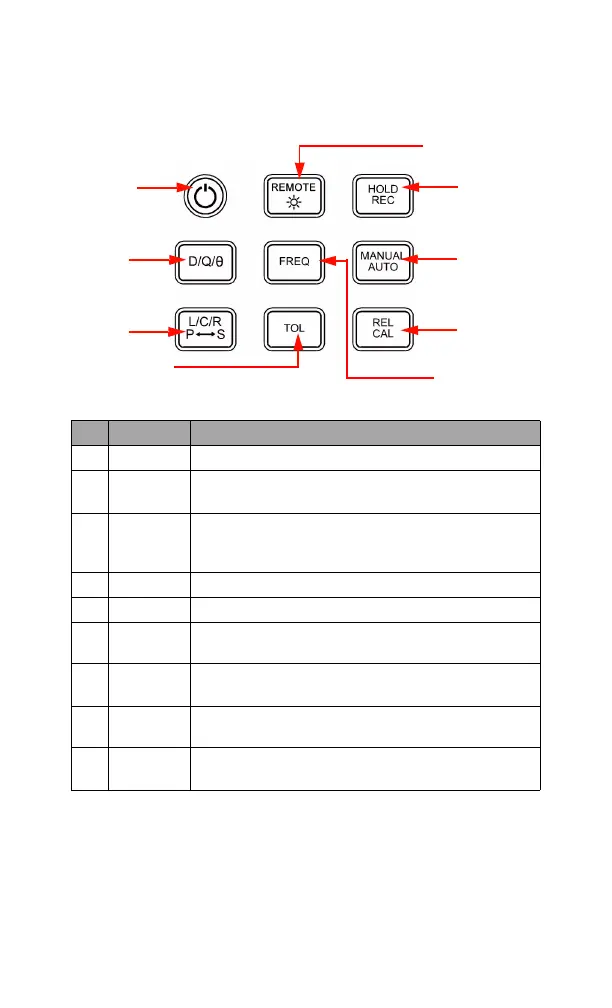

Keypad Operations
No. Keys Functions
1 Power To turn ON/OFF the instrument
2D/Q/θ To select dissipation factor, quality factor, and phase
angle display (only applicable for U1732B)
3L/C/R
P↔S
To select inductance, capacitance, and resistance
measurement
To toggle parallel and series mode
4TOL Tolerance mode
5 FREQ To select test frequency
6REL
CAL
Relative mode
Calibration mode
7Manual
AUTO
Manual range
Auto range
8HOLD
REC
Data hold
Static recording mode
9 REMOTE To toggle ON/OFF the remote function
Backlight display (only applicable for U1732B)
8
5
4
1
2
3
9
7
6
