AGP TP2000 - Accessory Insertion and Mode Shifting; Tap Chuck Tightening; Setting the Depth Meter; Depth Meter Purpose and Setup

8
change adapter, you may mount it directly into the machine's
coupling. If there is already another arbor in the machine,
simply push up on the Quick-Release Collar and remove.

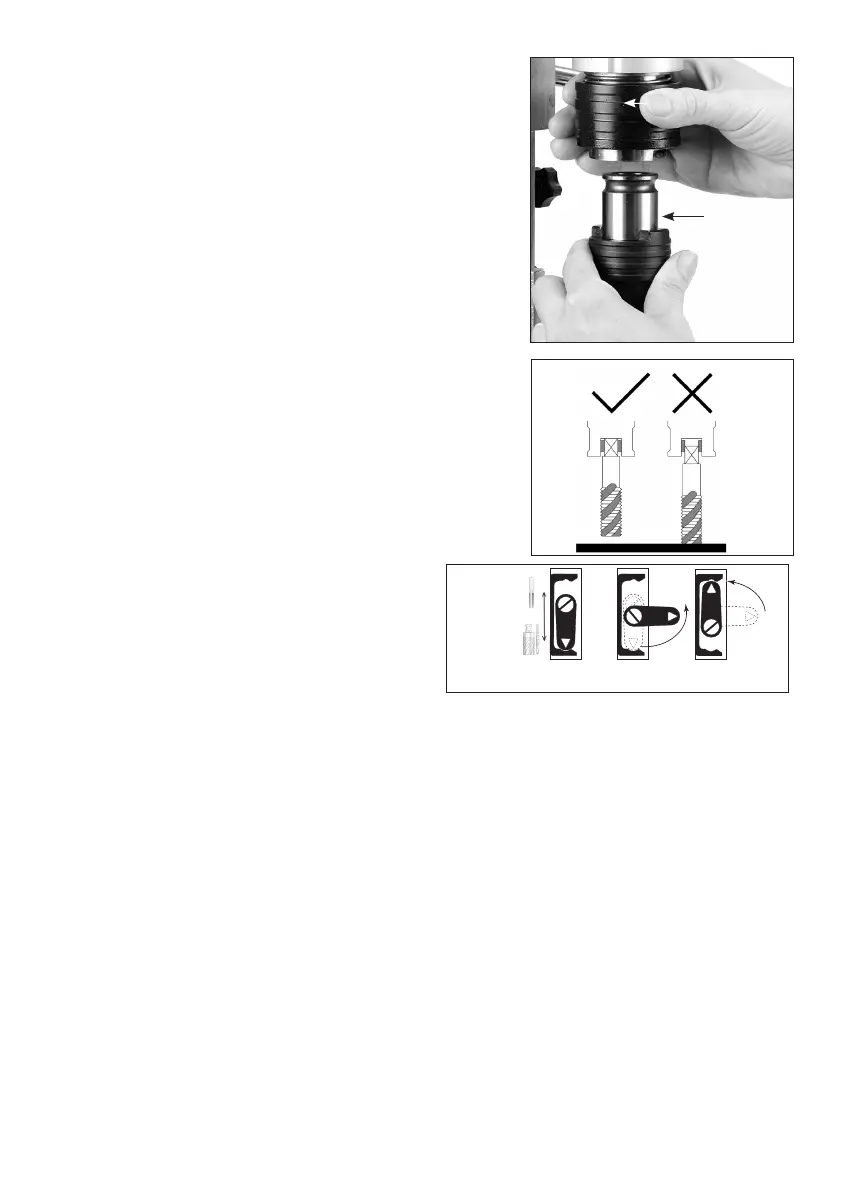

2. To insert the universal tap chuck or accessory, push up on the
Quick-Release Collar and insert the shank into the coupling.
Turn until the tangs line up and the Collar is able to close.
Ensure that it is securely in place.
3. Using the universal tap chuck, use the key to turn it to open its
jaws enough to fit the square of the tap. Ensure that the
corners of the square are properly located in the jaws. Then use
the key to securely tighten the chuck.
NOTE: Make sure that the tap is inserted as deeply as possible
into the jaws. An improperly seated tap will run off center and
could result in damage to the jaws or tap.
4. If it is in drilling mode, shift the gearbox to tapping mode by
swinging the gear selector tab out of the detent slot then
shifting downwards into tapping mode. Then pop the selector
tab back into the detent. It will sometimes be
necessary to turn the spindle by hand a little to
get it to shift all the way.
Only grab the arbor when turning the spindle,
never the quick-release collar. Otherwise, it will be
easy to accidentally release the arbor and it will
fall out. Follow the “TAP” symbol on the gear case. (The small arrow on the tab will be pointing upwards
when it is shifted correctly).
SETTING THE DEPTH METER
THE PROPER USE OF THE TAPPING DEPTH METER
Whenever tapping blind holes, the Tapping Depth Meter in conjunction with the Travel Limiter Stop must be
used for ensuring the prevention of possible damage to the gearbox and the tap.
ALWAYS ENSURE THAT THE HOLE ISN’T OVER TAPPED. THE HOLE’S DEPTH MUST BE MUST BE LONGER
THAN THE NEEDED THREADING DEPTH!!
1. Pre-place the tap against the work piece. To zero-in the needle.
2. While keeping the tap against the workpiece, adjust the pointer to the 4mm datum position on the left-
Drilling mode
Tapping mode
Drilling
mode
Tapping
mode
Quick-Release Collar
Shank
