NOTE:
Because on the standard capability circuit
board open and close are the same, a
vehicle open device must be connected so
that the device can only activate the gate
when it is fully closed. Connect one wire of
the open device to Open (terminal 4).
Connect the other wire of the open device
to Limit Switch Orange (terminal 3) for right
side installation or to Limit Switch Red
(terminal 1) for left side installation.

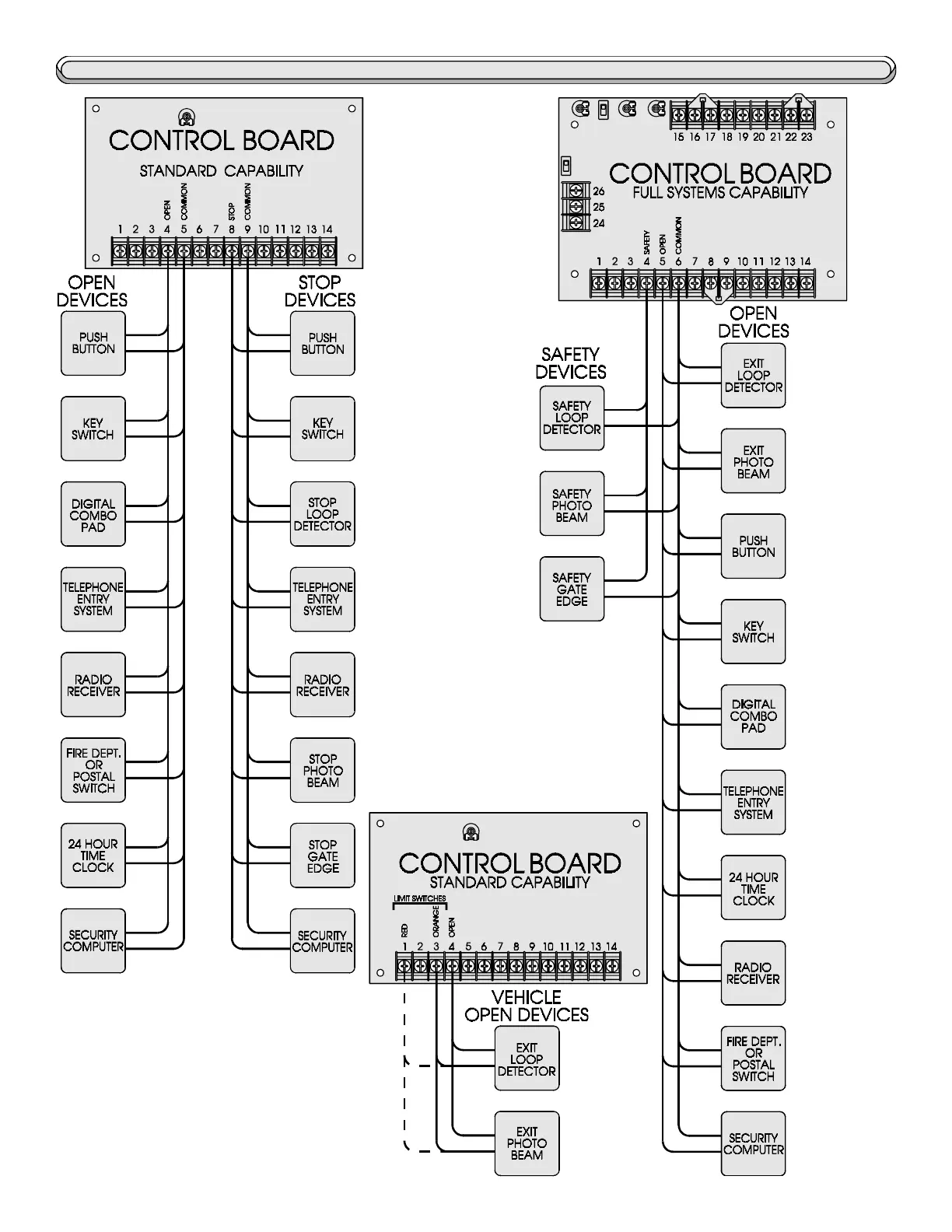

OTHER COMMON ACCESSORIES
NOTE:
All open and safety devices
muse provide normally open
contacts.
For devices requiring power,
refer to the specific diagram
for that particular device.
