Installation-, Operating-, Maintenance-Manual, Spare part List MAK10
AGT-PSG GmbH & Co.KG
Errors and printing mistakes excepted
Page 11
Translation - Manual MAK10 Rev. 11/2017
Assembly and Installation
Electrical Connections
All operations mentioned below to be performed by qualified personnel only.
The electrical connections of the sample gas cooler are on the right side panel (standard
housing) or on the rear panel (19”-rack housing).
A cold device coupling and a Schuko connector are used for supplying power at 230 V, cold
device coupling and a Nema connector are used for supplying power at 115 V.
The sample gas cooler has to be installed as shown at the circuit diagram. The cross section of
the power supply cables must comply with the consumption of the dryer, while keeping into
account also the ambient temperature, the conditions of the mains installation, the length of the
cables, and the requirements enforced by the local power provider.
Also requirements of VDE 0100 as well as relevant standards and guidelines must be adhered to
while setting up high-voltage devices with rated voltages of up to 1000V. The local protection of
the sample gas cooler is provided by the customer. The technical data is mentioned on the
model type plate and in the technical data sheet.
DANGER! Supply voltage! Be sure to check the local codes in your area. The electrical
connection and the safety systems have to apply. Before connecting the unit to the electrical
supply, verify carefully the data nameplate for the proper electrical information.
WARNING! Automatic start! After you built up the electrical connections, the cooler can start
automatically.

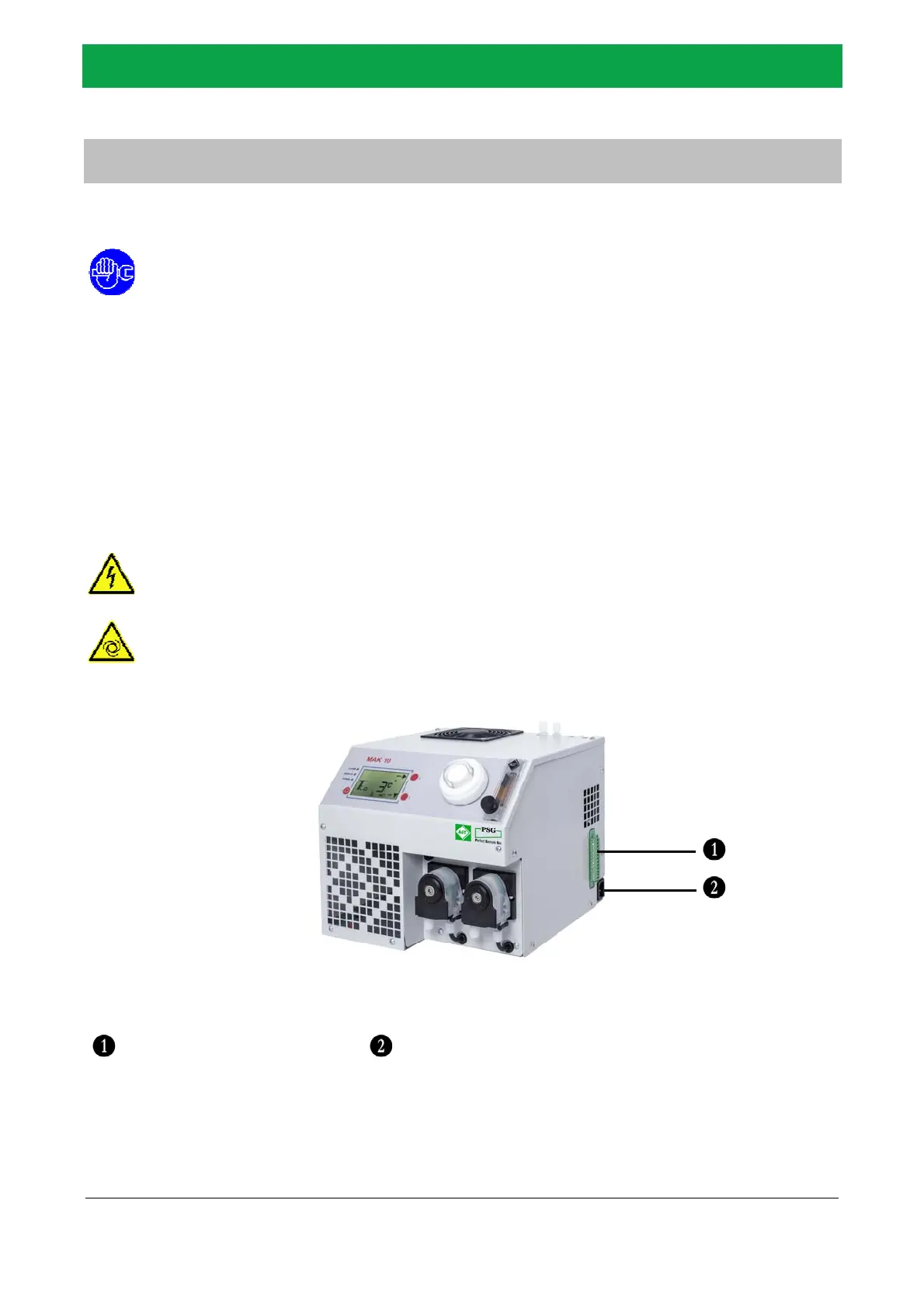

Remote monitoring connection Electrical connection / Power supply
